R-2. Check The Camera
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|

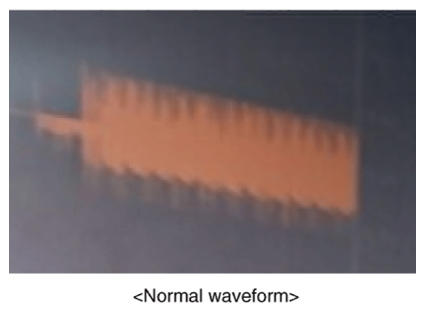

- Measure the video display waveform and output voltage of rear camera (using KDS and VMI).

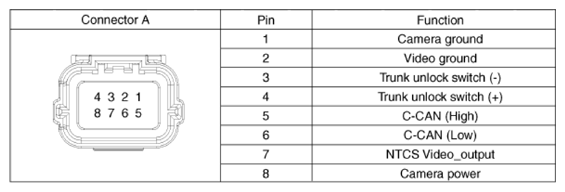

Connect VMI probes to pin 2 and pin 7.
- Spec: 0.8V - 1.2V
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Measure the output voltage of rear camera power source.
Connect to pin 1 and pin 8.
