Connector And Terminal Function

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

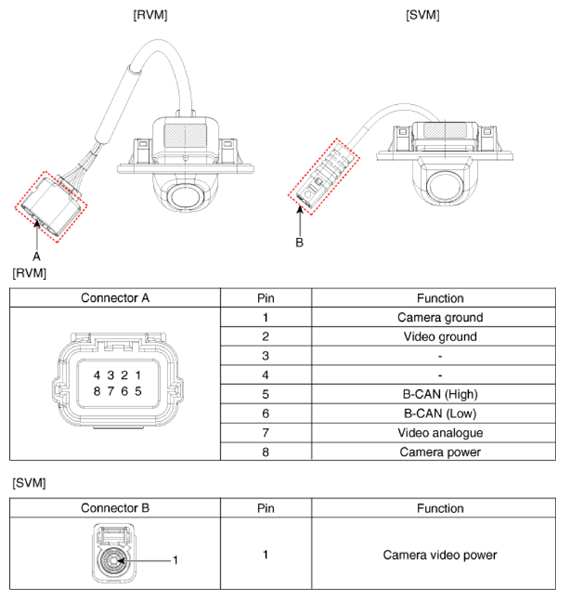

Fig 1: Rear View Monitor Connector End View And Terminal Description
G14959242Courtesy of KIA MOTORS AMERICA, INC.
