Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

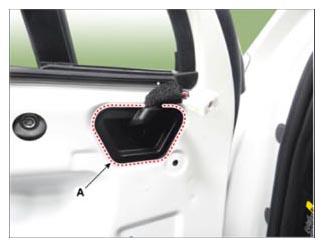

  2. Remove the outside rear view mirror cover (A) by using a flat-head screwdriver or remover.
    G14940098Courtesy of KIA MOTORS AMERICA, INC.

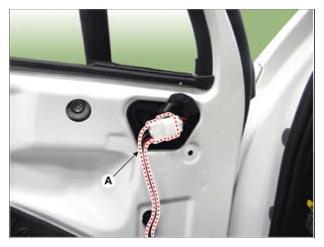

  3. Disconnect the outside rear view mirror connector (A).
    G14940099Courtesy of KIA MOTORS AMERICA, INC.

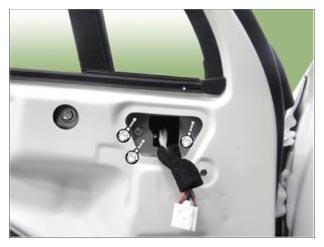

  4. Remove the outside rear view mirror assembly mounting bolts.

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 Kgf.m, 5.1 - 8.0 lb.ft, 60.7 - 95.4 lb.in)

    G14940100Courtesy of KIA MOTORS AMERICA, INC.

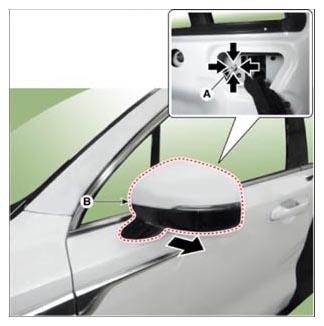

  5. Remove the outside rear view mirror assembly (A) by pushing the lock pin
    G14940101Courtesy of KIA MOTORS AMERICA, INC.
