Repair Procedures: Disassembly: Scalp

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the housing cover.

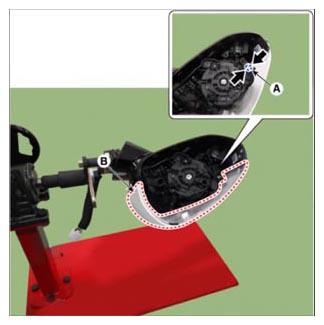

  2. Remove the scalp (B) by pushing the lock pin (A).
    G14940109Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • If clips and hooks are damaged, replace the scalp with a new one as noise may occur in driving.
    • After removing the scalp, make sure that the clip and hook on the back of the scalp are not damaged.
    • After assembly, check each function of the outside rear view mirror.
    • Pressurize enough to allow all hooks to engage when assembling the scalp.
