Housing Cover

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mirror.

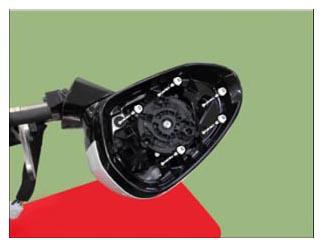

  2. Remove the outside rear view mirror housing cover mounting screws.
    G14940107Courtesy of KIA MOTORS AMERICA, INC.

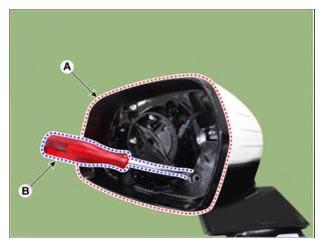

  3. After inserting a flat-head screwdriver as shown in the illustration below, remove the housing cover (A) by applying a momentary force.
    G14940108Courtesy of KIA MOTORS AMERICA, INC.
