Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

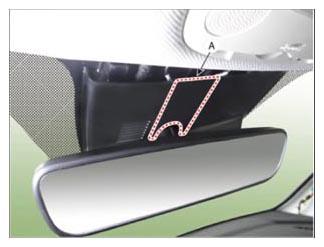

  2. Remove the inside rear view mirror cover (A)
    G14940110Courtesy of KIA MOTORS AMERICA, INC.

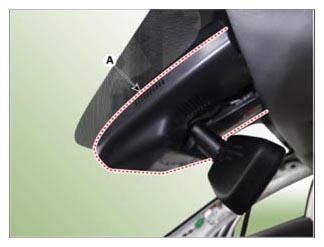

  3. Remove the multi sensor cover (A) by sliding the entire multi sensor cover to the bottom.
    G14940111Courtesy of KIA MOTORS AMERICA, INC.

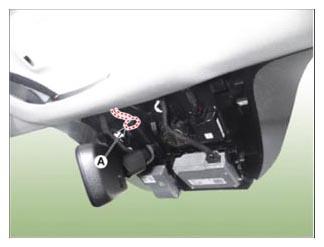

  4. Disconnect the inside rear view mirror connector (A)
    G14940112Courtesy of KIA MOTORS AMERICA, INC.

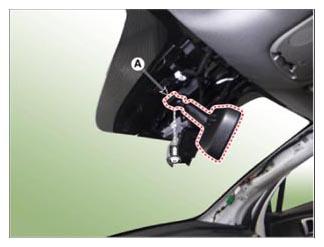

  5. Remove the mounted screw and push the inside rear view mirror base upward to remove the inside rear view mirror assembly (A).
    G14940113Courtesy of KIA MOTORS AMERICA, INC.
