Wheel Sensor ID Writing

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

The main contents of diagnostic method using diagnostic device are as follows:

Connect self-diagnostic device to data link connector located in the lower of driver side crash pad and then turn the self-diagnosis device after ignition is ON.

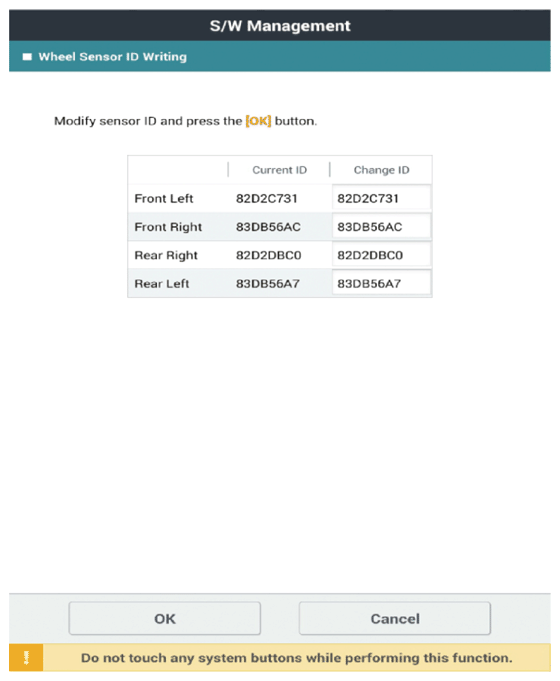

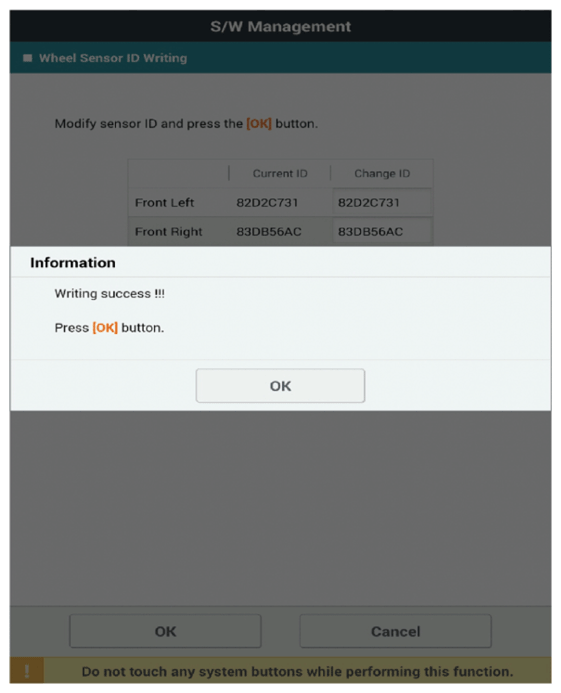

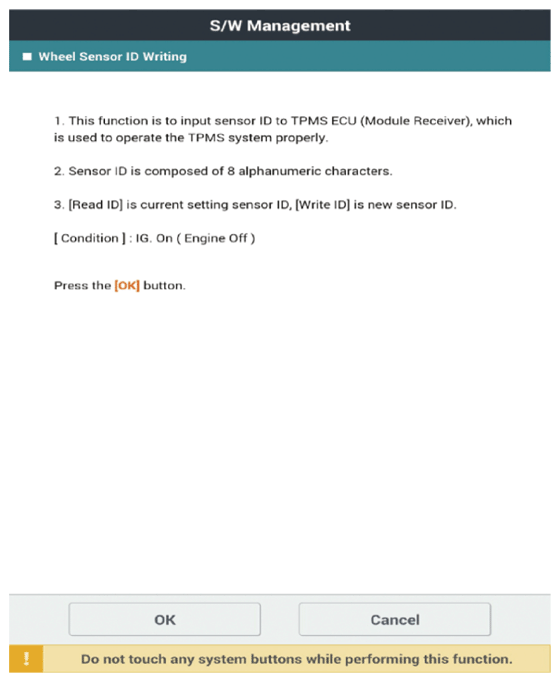

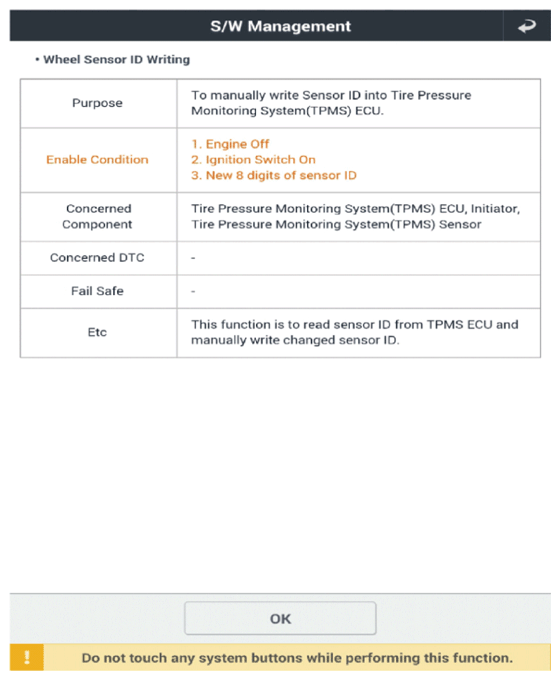

Select the "IBU-TPMS" and "Wheel Sensor ID Writing" on KDS vehicle selection screen, then select OK.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
