Vehicle Name Writing

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

The main contents of diagnostic method using self-diagnostic device are as follows:

Connect self-diagnostic device to data link connector located in the lower of driver side crash pad and then turn the self-diagnosis device after ignition is ON.

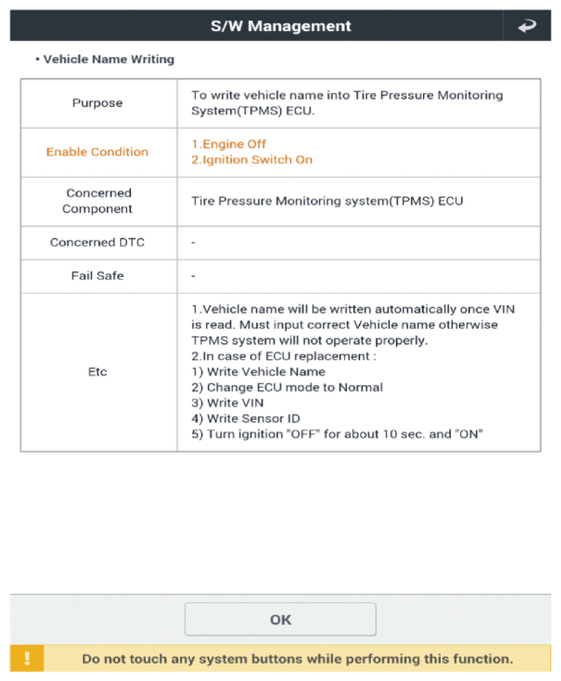

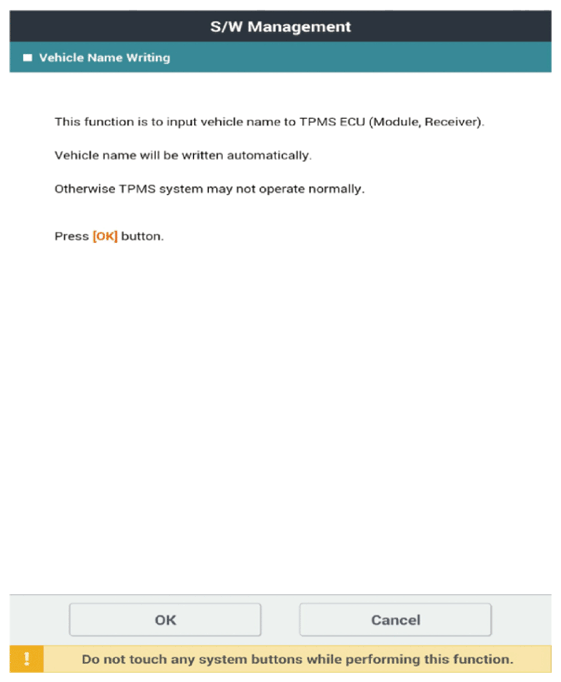

Select the "IBU-TPMS" and "Vehicle Name Writing" on KDS vehicle selection screen, then select OK.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

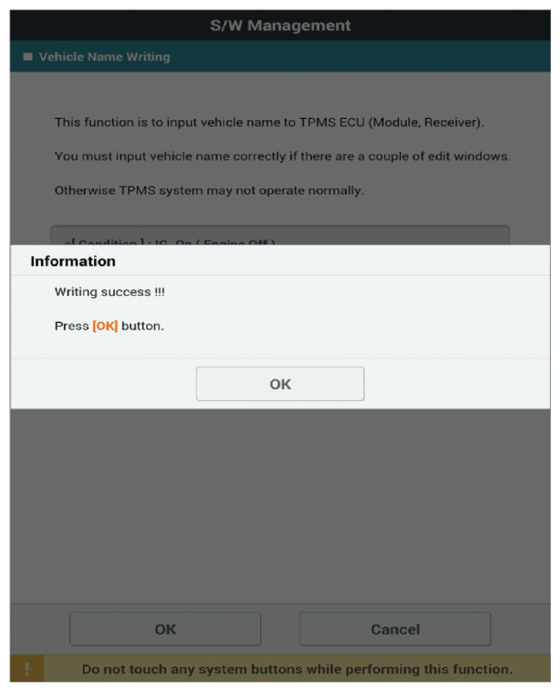

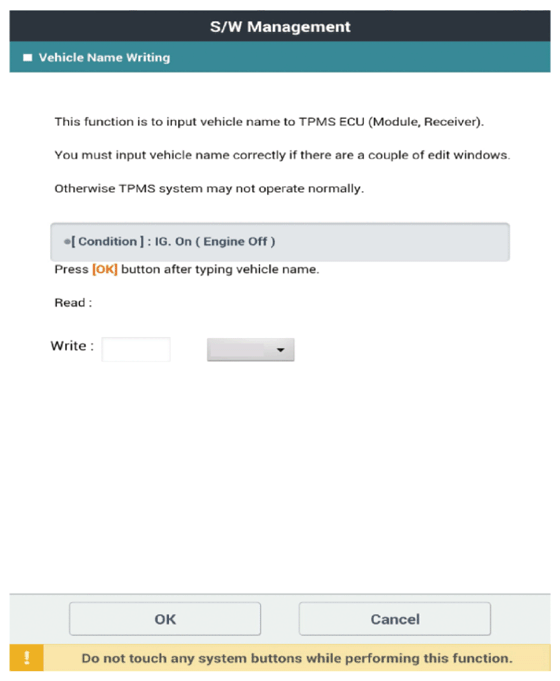

The vehicle naming (Read/Write) is automatically typed and just select the vehicle's option in the selection tab below.

* The vehicle naming code is different as the vehicle models

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
