Interior Antenna 3

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the luggage floor box cap (A).
    G14958738Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the luggage floor box (A).
    G14958739Courtesy of KIA MOTORS AMERICA, INC.

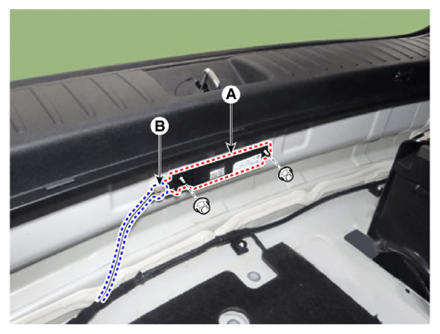

  4. Remove the interior antenna 3 (A) by removing the nuts after disconnecting the connector (B).
    G14958740Courtesy of KIA MOTORS AMERICA, INC.
