Interior Antenna 2

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

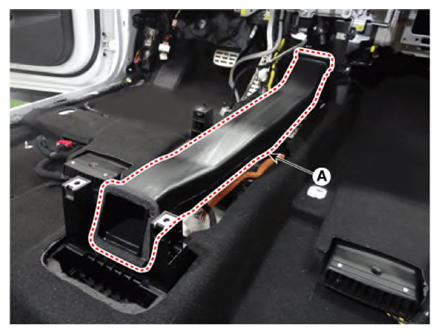

  3. Remove the rear air duct (A).
    G14958733Courtesy of KIA MOTORS AMERICA, INC.

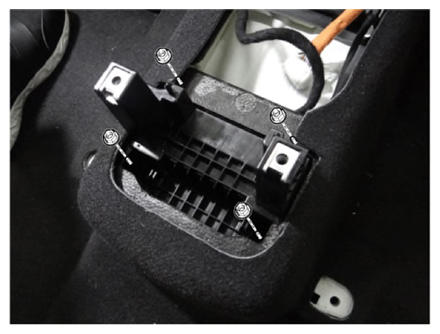

  4. Remove the mounting nuts from the console rear mounting bracket.
    G14958734Courtesy of KIA MOTORS AMERICA, INC.

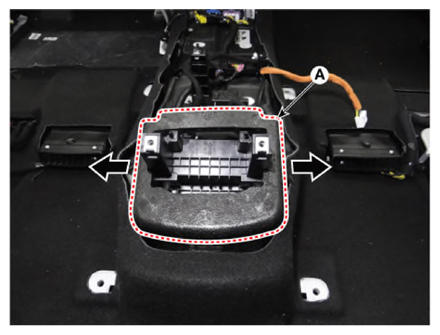

  5. Remove the console rear mounting bracket (A) after detaching the floor console side carpet.
    G14958735Courtesy of KIA MOTORS AMERICA, INC.

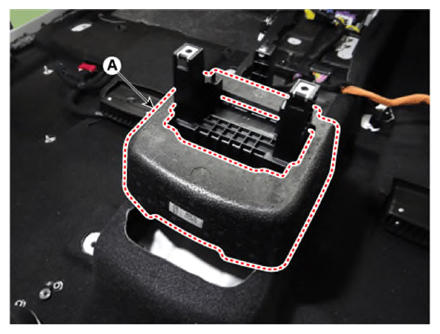

  6. Remove the console rear bracket styrofoam (A).
    G14958736Courtesy of KIA MOTORS AMERICA, INC.

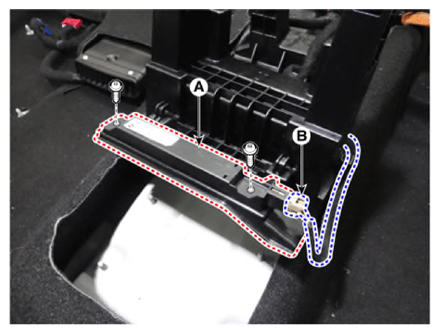

  7. Remove the inferior antenna 2 (A) by removing the mounting screws after disconnecting the connector (B).
    G14958737Courtesy of KIA MOTORS AMERICA, INC.
