Interior Antenna 1

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the crash pad center panel.

    (Refer to body - "CRASH PAD CENTER PANEL ")

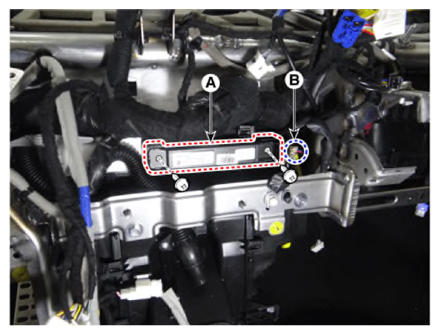

  3. Remove the interior antenna 1 (A) by removing the screw after disconnecting the connector (B).
    G14958731Courtesy of KIA MOTORS AMERICA, INC.

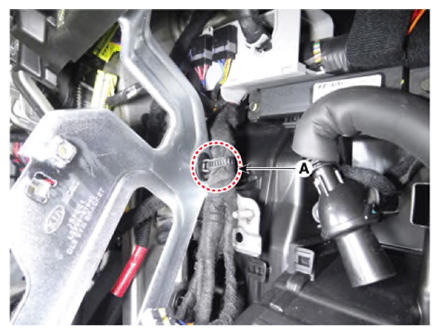

  4. Remove the fixing clip (A) from the SVM bracket.
    G14958732Courtesy of KIA MOTORS AMERICA, INC.
