Front Door Antenna

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

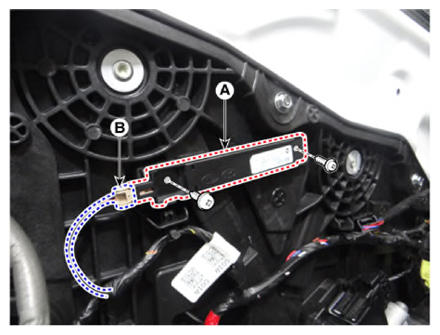

  3. Remove the front door antenna (A) by removing the screws after disconnecting the connector (B).
    G14958743Courtesy of KIA MOTORS AMERICA, INC.
