Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

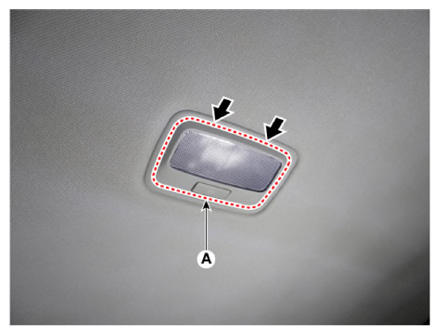

  2. Remove the room lamp lens (A) by using a flat-head screwdriver or remover.
    G14958519Courtesy of KIA MOTORS AMERICA, INC.

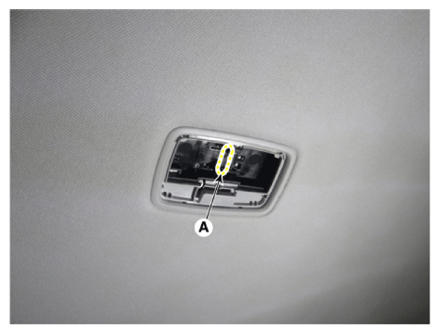

  3. Replace the room lamp bulb (A).
    G14958520Courtesy of KIA MOTORS AMERICA, INC.
