Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad side mounting cover [Driver's seat] (A).
    G14958510Courtesy of KIA MOTORS AMERICA, INC.

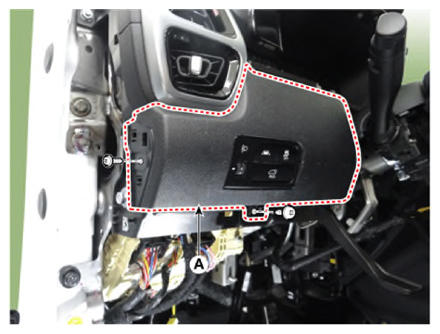

  4. Remove the crash pad driver's seat garnish (A) by removing the mounting screw.
    G14958511Courtesy of KIA MOTORS AMERICA, INC.

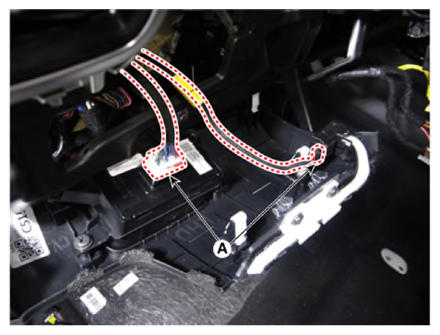

  5. Disconnect the connectors (A) from the crash pad driver's seat garnish.
    G14958512Courtesy of KIA MOTORS AMERICA, INC.

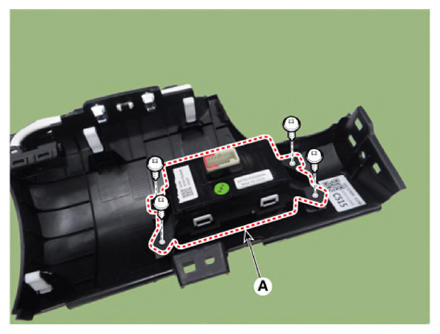

  6. Remove the side crash pad lower switch (A) by removing the mounting screws.
    G14958513Courtesy of KIA MOTORS AMERICA, INC.

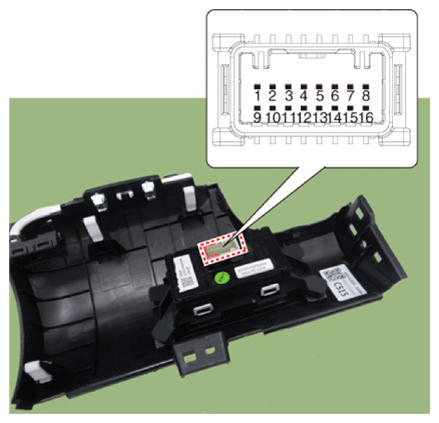

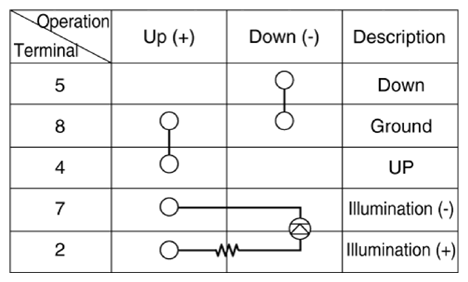

  7. Check rheostat switch for continuity.
    G14958514Courtesy of KIA MOTORS AMERICA, INC.
    G14958515Courtesy of KIA MOTORS AMERICA, INC.
