[Turn Signal Lamp]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear combination lamp.

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

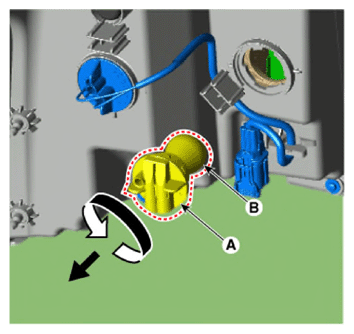

  2. Remove the socket (A) by rotating counterclockwise.
  3. Replace the bulb (B) from the socket.
    G14958500Courtesy of KIA MOTORS AMERICA, INC.
