Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

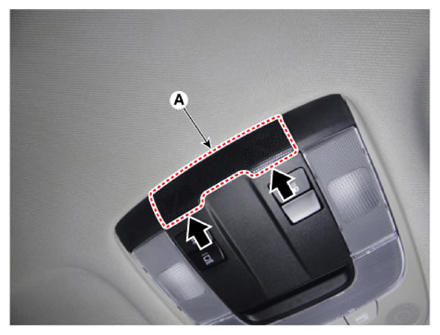

  2. Remove the overhead console lamp mic grille (A) by using a flat-head screwdriver or remover.
    G14958492Courtesy of KIA MOTORS AMERICA, INC.

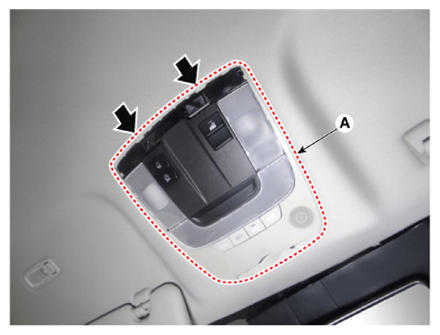

  3. Remove the overhead console lamp (A) by using a flat-head screwdriver or remover.
    G14958493Courtesy of KIA MOTORS AMERICA, INC.

    Information

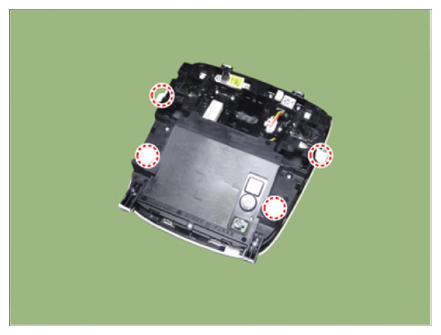

    Replace any damaged clips.

    G14958494Courtesy of KIA MOTORS AMERICA, INC.

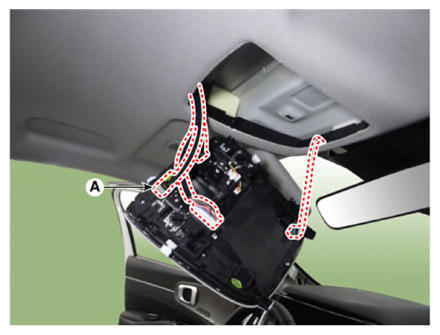

  4. Disconnect the all connectors (A) from the overhead console lamp.
    G14958495Courtesy of KIA MOTORS AMERICA, INC.
