Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

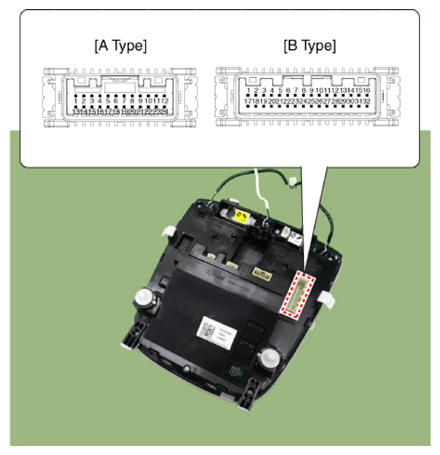

  2. Check for continuity between terminals.
    G14958489Courtesy of KIA MOTORS AMERICA, INC.

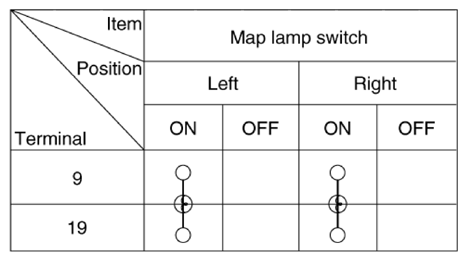

    [A Type]

    G14958490Courtesy of KIA MOTORS AMERICA, INC.

    [B Type]

    G14958491Courtesy of KIA MOTORS AMERICA, INC.
