Turn Signal Lamp

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

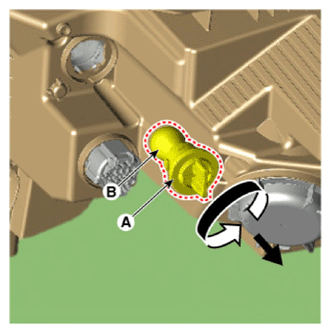

  2. Remove the turn signal lamp socket (A) by rotating in the counterclockwise.
  3. Replace the turn signal lamp bulb (B) from the socket.
    G14958471Courtesy of KIA MOTORS AMERICA, INC.
