Repair Procedures: Removal: Headlamps

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

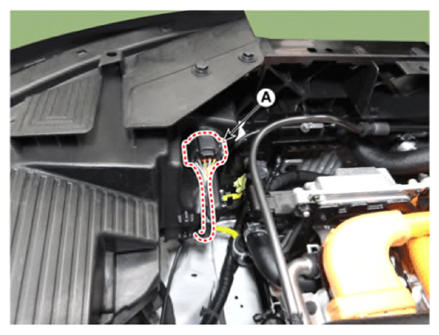

Disconnect the headlamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

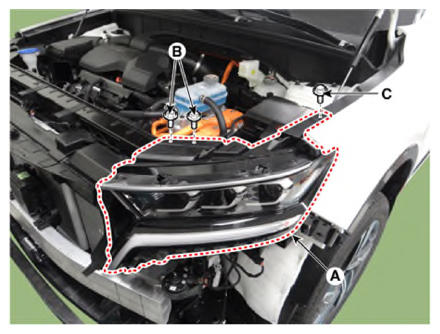

Remove the headlamp (A) by removing the mounting bolts.

Tightening torque

Bolt (B): 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.76 - 8.7 lb.ft)

Bolt (C): 22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.7 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

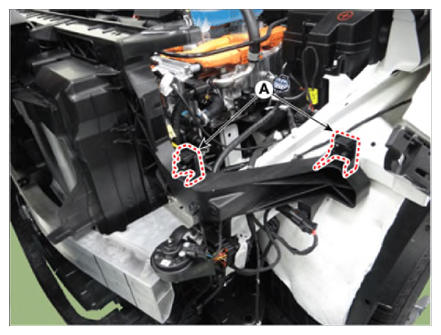

NOTE: Be careful not to damage the retaining clip (A).

Courtesy of KIA MOTORS AMERICA, INC.
