Headlamp Aiming Point
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
[A Type]

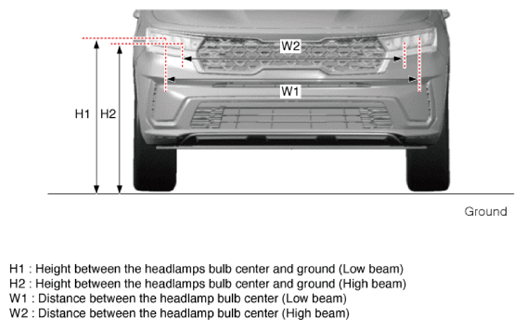

| Condition | H1 | H2 | W1 | W2 | Note |
|---|---|---|---|---|---|
| Empty | 887 (34.9212) | 870 (34.2520) | 1536 (60.4724) | 1316 (51.8110) | ALL DIM in mm (in.) |
| 1 person on board | 880 (34.6457) | 863 (33.9764) |
[B Type]
| Condition | H1 | H2 | W1 | W2 | Note |
|---|---|---|---|---|---|
| Empty | 879 (34.6063) | 862 (33.9370) | 1482 (58.3465) | 1237 (48.7008) | ALL DIM in mm (in.) |
| 1 person on board | 872 (34.3307) | 855 (33.6614) |
- If headlamp leveling device is equipped, adjust the headlamp leveling device switch to 0 position.
- Turn the low beam on without driver aboard.

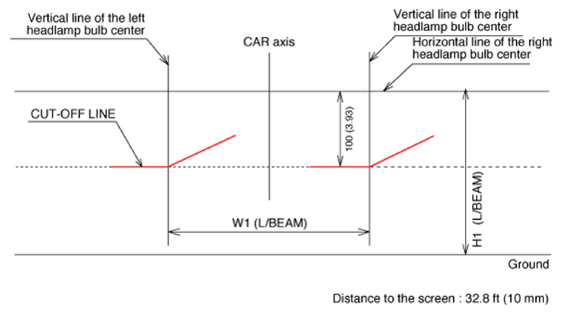

- The low beam cut-off line should be projected as shown in the picture.
- Turn the high beam on without driver aboard.

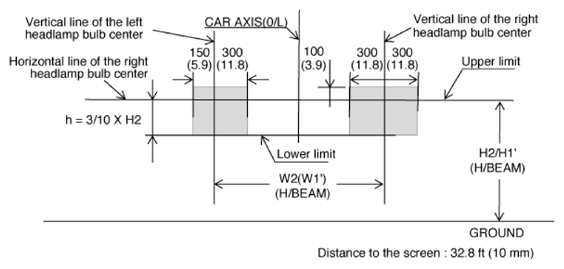

- The hot zone should be projected in the allowable range shown in the picture.
