Head Lamp Aiming
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The headlamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.
If there are any regulations pertinent to the aiming of headlamps in the area where the vehicle is to be used, adjust so as to meet those requirements.
If beam-setting equipment is not available, proceed as follows:
- Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
- The vehicle should be placed on a flat floor.
- Draw vertical lines (passing through respective headlamp centers) and a horizontal line (passing through center of headlamps) on the screen.
- If headlamp leveling device is equipped, adjust the headlamp leveling device switch to 0 position.
- With the headlamps and battery in normal condition, aim the headlamps so the brightest portion falls on the horizontal and vertical lines.

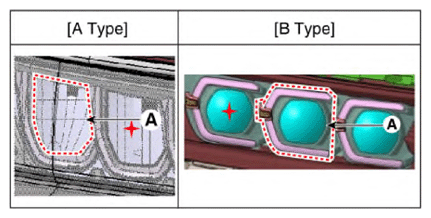

- Cover the headlamp outer projection (A) and set the cut-off position.
[STD]

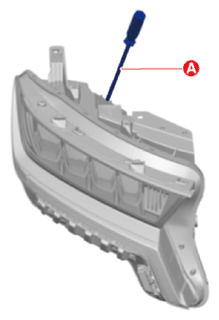

A: Vertical (High/Low beam)
[OPT]

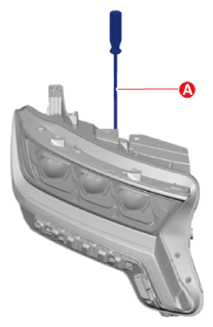

A: Vertical (High/Low beam)
