Repair Procedures: Replacement: Bulb

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the glove box lamp (A) using a flat-head screwdriver or remover.
    G14958537Courtesy of KIA MOTORS AMERICA, INC.

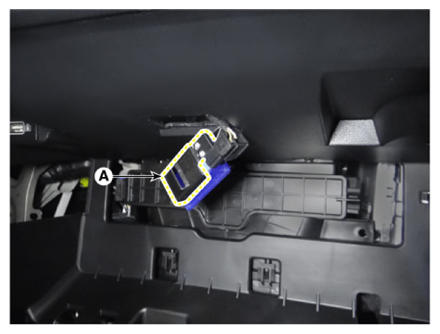

  3. Remove the glove box lamp cover (A).
    G14958538Courtesy of KIA MOTORS AMERICA, INC.

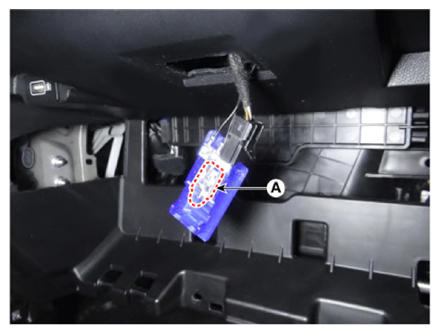

  4. Replace the glove box lamp bulb (A).
    G14958539Courtesy of KIA MOTORS AMERICA, INC.
