Fog Lamp Aiming Point
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|

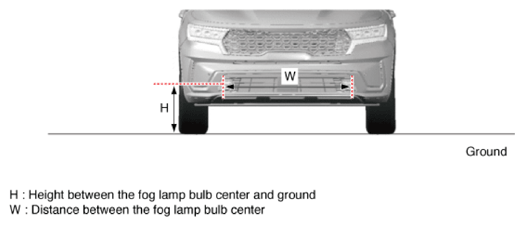

[A Type]
| Vehicle condition |
H |
W |
Note |
| Empty |
408 (16.0629) |
1, 064 (41.8897) |
ALL DIM in mm (in.) |
| 1 person on board |
401 (15.7874) |
[B Type]
| Vehicle condition |
H |
W |
Note |
| Empty |
408 (16.0629) |
1, 092 (42.9921) |
ALL DIM in mm (in.) |
| 1 person on board |
401 (15.7874) |
- Turn the front fog lamp on without the driver aboard.

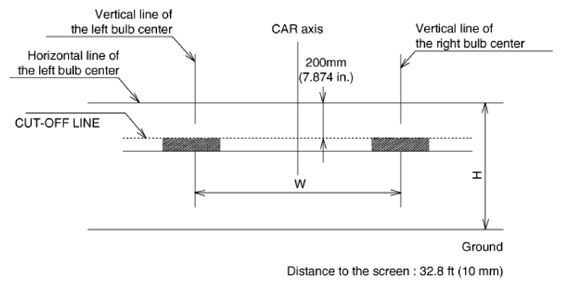

- The cut-off line should be projected in the allowable range (shaded region).
