Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
- Remove the second row seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the third row seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear transverse trim.
(Refer to Trunk Trim - "REAR TRANSVERSE TRIM ")
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")

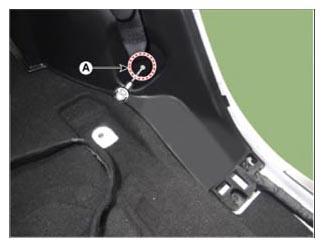

- Remove the second row belt lower anchor (A) by removing the mounting bolt.
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

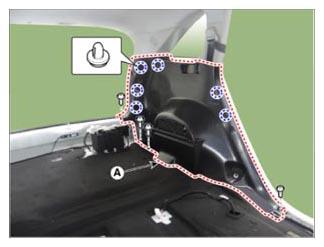

- Remove the luggage side trim (A) after removing the mounting bolt.
