[6/7 Seat]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the third row seat assembly.

    (Refer to Rear Seat - "[THIRD ROW SEAT ASSEMBLY] ")

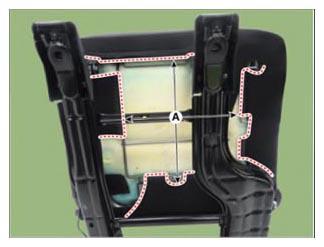

  2. Remove the third row seat cover hooks (A) by using a flat-head screwdriver or remover.
    G14942311Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the third row seat cushion assembly by from the third row seat cushion frame.

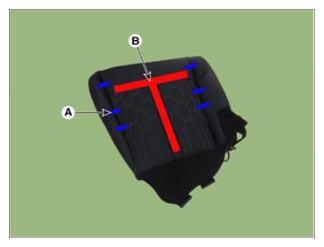

  4. Remove the Velcro tape (B) and the hog ring clip (A) from inside the third row seat cushion cover.
    G14942312Courtesy of KIA MOTORS AMERICA, INC.

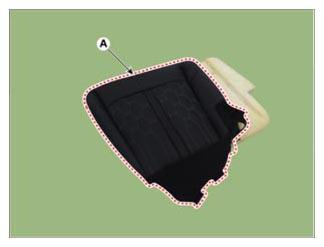

  5. Remove the third row seat cushion cover (A) from the third row seat cushion pad.
    G14942313Courtesy of KIA MOTORS AMERICA, INC.
