[5/7 Seat]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

[LH]

  1. Remove the second row seat assembly [LH].

    (Refer to Rear Seat - "[SECOND SEAT ASSEMBLY] ")

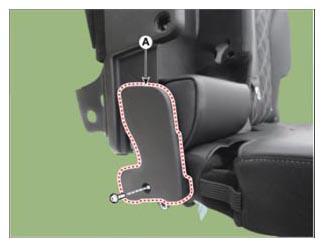

  2. Remove the second row seat inner shield cover (A) by removing the mounting screw.
    G14942279Courtesy of KIA MOTORS AMERICA, INC.

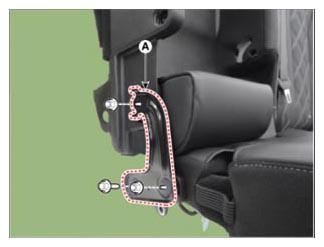

  3. Remove the second row seat back armrest bracket (A) by removing the mounting bolt and nuts.
    G14942280Courtesy of KIA MOTORS AMERICA, INC.

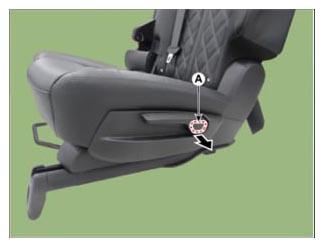

  4. Remove the second row seat recliner lever cap (A). by using a flat-head screwdriver or remover.
    G14942281Courtesy of KIA MOTORS AMERICA, INC.

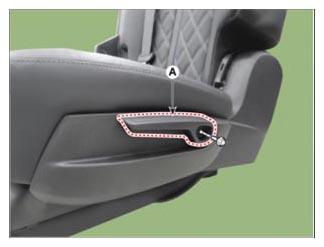

  5. Remove the second row seat recliner lever (A) by removing the mounting bolt.
    G14942282Courtesy of KIA MOTORS AMERICA, INC.

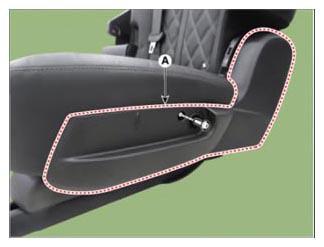

  6. Remove the second row outer shield cover (A) by removing the mounting screw.
    G14942283Courtesy of KIA MOTORS AMERICA, INC.

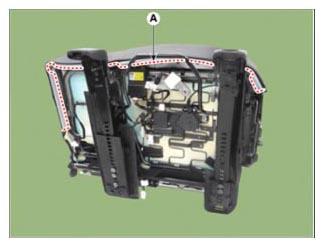

  7. Remove the second row seat cover hooks (A) by using a flat-head screwdriver or remover.
    G14942284Courtesy of KIA MOTORS AMERICA, INC.

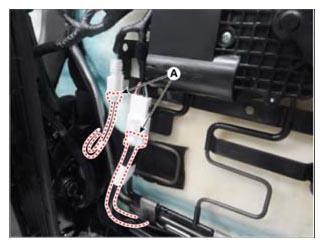

  8. Disconnect the connectors.
    G14942285Courtesy of KIA MOTORS AMERICA, INC.

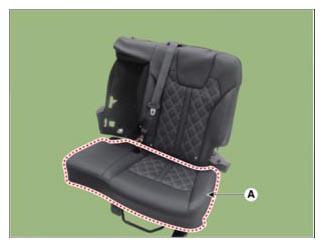

  9. Remove the second row seat cushion assembly (A) by from the second row seat cushion frame.
    G14942286Courtesy of KIA MOTORS AMERICA, INC.

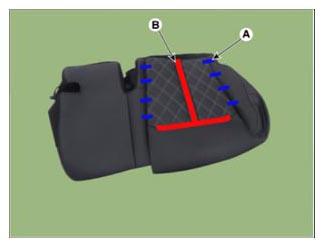

  10. Remove the Velcro tape (B) and the hog ring clip (A) from inside the second row seat cushion cover.
    G14942287Courtesy of KIA MOTORS AMERICA, INC.

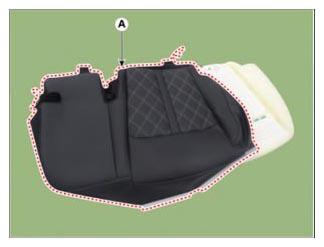

  11. Remove the second row seat cushion cover (A) from the second row seat cushion pad.
    G14942288Courtesy of KIA MOTORS AMERICA, INC.
  12. Install in the reverse order of removal.

[RH]

  1. Remove the second row seat assembly [RH].

    (Refer to Rear Seat - "[SECOND SEAT ASSEMBLY] ")

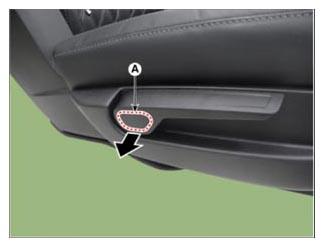

  2. Remove the second row seat recliner lever cap (A) by using a flat-head screwdriver or remover.
    G14942290Courtesy of KIA MOTORS AMERICA, INC.

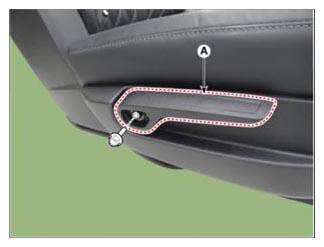

  3. Remove the second row seat recliner lever (A) by removing the mounting bolt.
    G14942291Courtesy of KIA MOTORS AMERICA, INC.

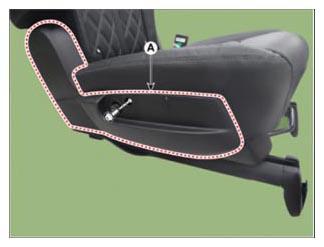

  4. Remove the second row seat outer shield cover (A) by removing the mounting bolt.
    G14942292Courtesy of KIA MOTORS AMERICA, INC.

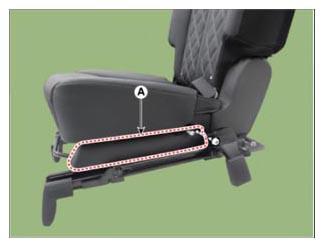

  5. Remove the second row seat inner shield cover (A) by removing the mounting screw.
    G14942293Courtesy of KIA MOTORS AMERICA, INC.

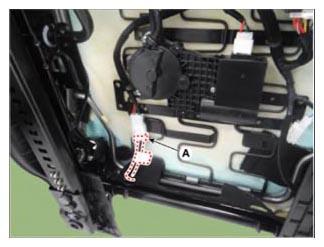

  6. Disconnect the second row seat heating connector (A).
    G14942294Courtesy of KIA MOTORS AMERICA, INC.

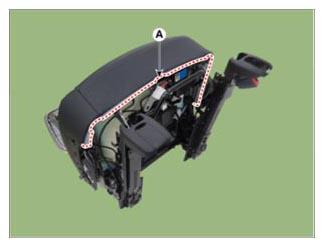

  7. Remove the second row seat cover hooks (A) by using a flat-head screwdriver or remover.
    G14942295Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the second row seat cushion assembly (A) from the second row seat cushion frame.
    G14942296Courtesy of KIA MOTORS AMERICA, INC.

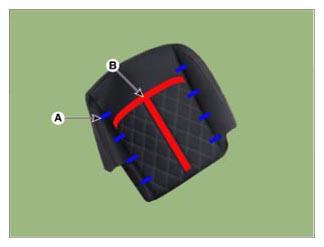

  9. Remove the Velcro tape (B) and the hog ring clip (A) from inside the second row seat cushion cover.
    G14942297Courtesy of KIA MOTORS AMERICA, INC.

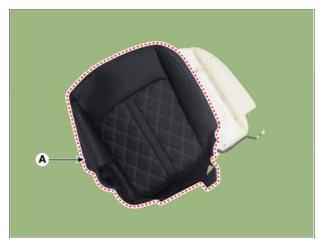

  10. Remove the second row seat cushion cover (A) from the second row seat cushion pad.
    G14942298Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
