[Second Row Seat Back Cover]: [6-Seat]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the second row seat assembly.

    (Refer to Rear Seat - "[SECOND SEAT ASSEMBLY] ")

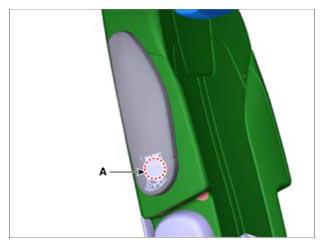

  2. Remove the second row seat back armrest cap (A) by using a flat-head screwdriver or remover.
    G14942247Courtesy of KIA MOTORS AMERICA, INC.

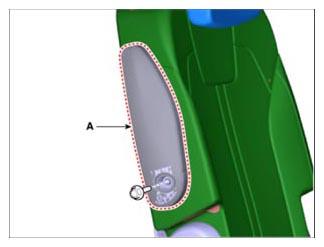

  3. Remove the second row seat armrest (A) by removing the mounting bolt.
    G14942248Courtesy of KIA MOTORS AMERICA, INC.

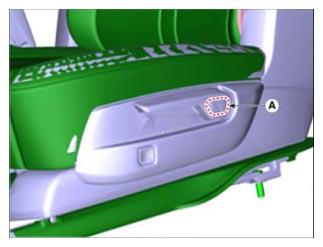

  4. Remove the second row seat recliner lever cap (A). by using a flat-head screwdriver or remover.
    G14942249Courtesy of KIA MOTORS AMERICA, INC.

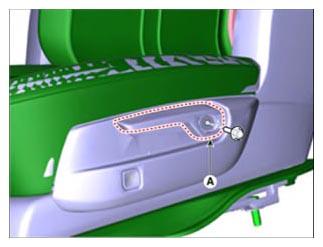

  5. Remove the second row seat recliner lever (A) by removing the mounting bolt.
    G14942250Courtesy of KIA MOTORS AMERICA, INC.

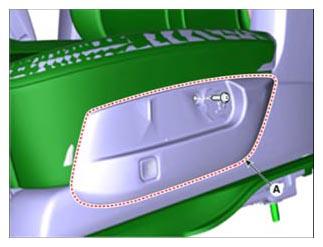

  6. Remove the second row seat lever garnish (A).
    G14942251Courtesy of KIA MOTORS AMERICA, INC.

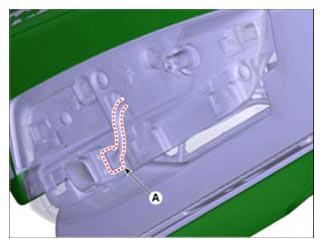

  7. Disconnect the second row seat power switch connector (A).
    G14942252Courtesy of KIA MOTORS AMERICA, INC.

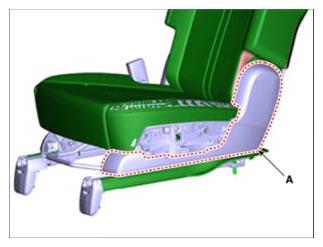

  8. Remove the second row seat outer shield cover (A). by using a flat-head screw driver or remover.
    G14942253Courtesy of KIA MOTORS AMERICA, INC.

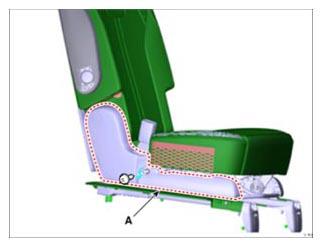

  9. Remove the second row seat inner shield cover (A) by removing the mounting screw.
    G14942254Courtesy of KIA MOTORS AMERICA, INC.

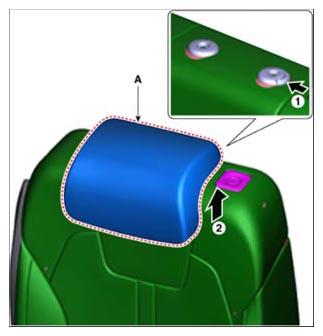

  10. Remove the headrest (A) by pressing the lock pin.
    G14942255Courtesy of KIA MOTORS AMERICA, INC.

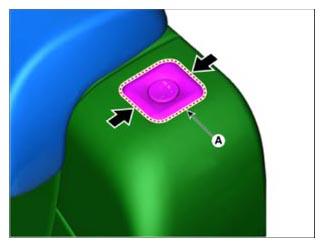

  11. Remove the folding switch (A) by using a flat-head screwdriver or remover.
    G14942256Courtesy of KIA MOTORS AMERICA, INC.

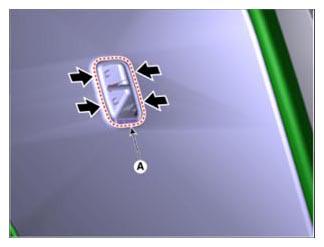

  12. Remove the second row seat child anchor cover (A) by using a flat-head screwdriver or remover.
    G14942257Courtesy of KIA MOTORS AMERICA, INC.

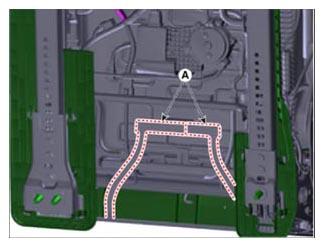

  13. Remove the second row seat cover hooks (A) by using a flat-head screwdriver or remover.
    G14942258Courtesy of KIA MOTORS AMERICA, INC.

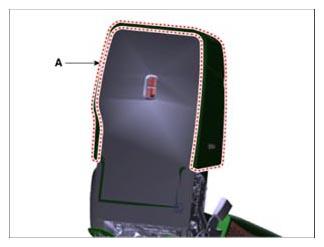

  14. Remove the second row seat cover hooks (A) by using a flat-head screwdriver or remover.
    G14942259Courtesy of KIA MOTORS AMERICA, INC.

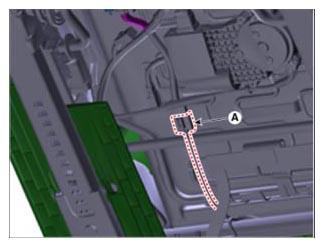

  15. Disconnect the second row seat heating connector (A).
    G14942260Courtesy of KIA MOTORS AMERICA, INC.

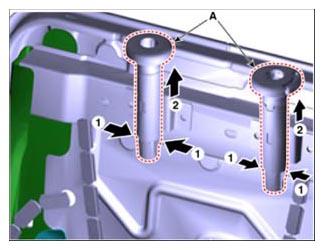

  16. Remove the headrest guide (A) by pressing the lock pin.
    G14942261Courtesy of KIA MOTORS AMERICA, INC.

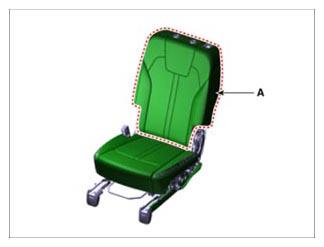

  17. Remove the second row seat back assembly (A) from the second row seat back frame.
    G14942262Courtesy of KIA MOTORS AMERICA, INC.

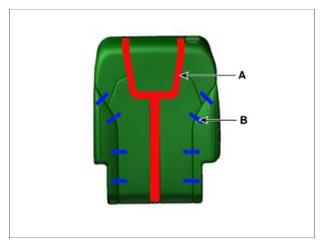

  18. Remove the Velcro tape (A) and the hog ring clip (B) from inside the second row seat back cover.
    G14942263Courtesy of KIA MOTORS AMERICA, INC.

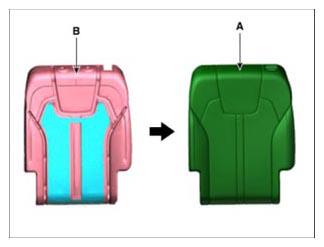

  19. Remove the second row seat back cover (A) from the second row seat back pad.
    G14942264Courtesy of KIA MOTORS AMERICA, INC.
