[5/7 Seat]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Take care not to bend or scratch the trim and panels.

[LH]

  1. Remove the second row seat assembly.

    (Refer to Rear Seat - "[SECOND SEAT ASSEMBLY] ")

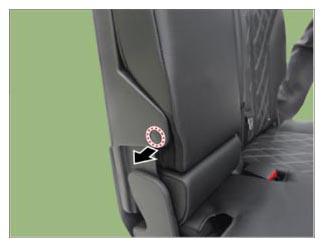

  2. Remove the second row seat back armrest cap by using a flat-head screwdriver or remover.
    G14942209Courtesy of KIA MOTORS AMERICA, INC.

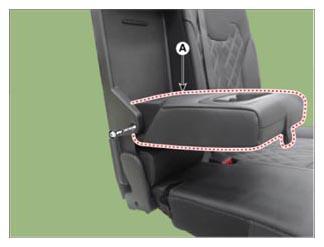

  3. Remove the second row seat back armrest (A) removing the mounting bolt.
    G14942210Courtesy of KIA MOTORS AMERICA, INC.

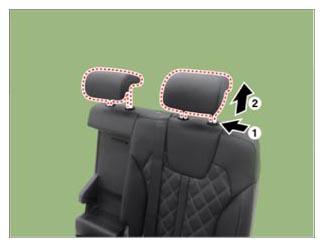

  4. Remove the headrest (A) by pressing the lock pin.
    G14942211Courtesy of KIA MOTORS AMERICA, INC.

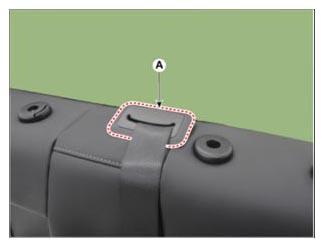

  5. Remove the second row seat belt center cover (A) by using a flat-head screwdriver or remover.
    G14942212Courtesy of KIA MOTORS AMERICA, INC.

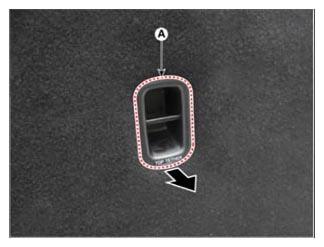

  6. Remove the second row seat child anchor cover (A) by using a flat-head screwdriver or remover.
    G14942213Courtesy of KIA MOTORS AMERICA, INC.

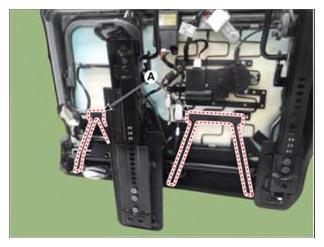

  7. Remove the second row seat cover hooks (A). by using a flat-head screwdriver or remover.
    G14942214Courtesy of KIA MOTORS AMERICA, INC.

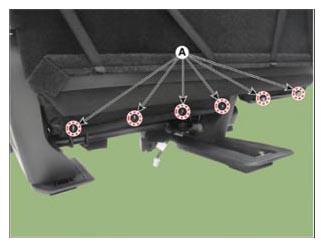

  8. Remove the hog-ring clips (A)
    G14942215Courtesy of KIA MOTORS AMERICA, INC.

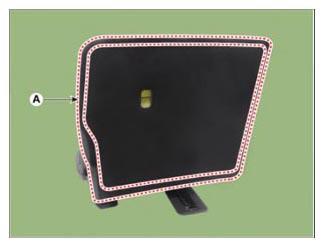

  9. Remove the second row seat strap cover (A) by using a flat-head screwdriver or remover.
    G14942216Courtesy of KIA MOTORS AMERICA, INC.

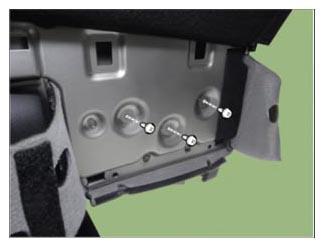

  10. Remove the screw on the back of the second row seat back armrest cover.
    G14942217Courtesy of KIA MOTORS AMERICA, INC.

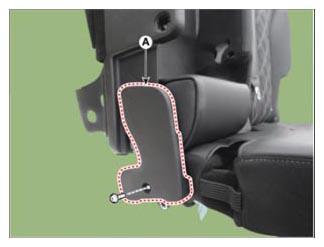

  11. Remove the second row seat inner shield cover (A) by removing the mounting screw.
    G14942218Courtesy of KIA MOTORS AMERICA, INC.

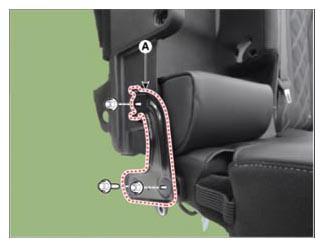

  12. Remove the second row seat back armrest bracket (A) by removing the mounting bolt and nuts.
    G14942219Courtesy of KIA MOTORS AMERICA, INC.

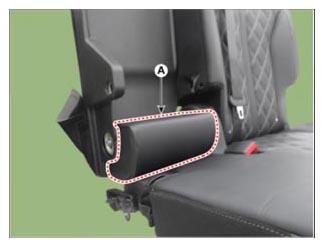

  13. Remove the second row seat back lower armrest pad (A).
    G14942220Courtesy of KIA MOTORS AMERICA, INC.

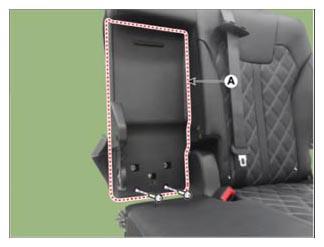

  14. Remove the second row seat back armrest panel (A) by removing the mounting screws.
    G14942221Courtesy of KIA MOTORS AMERICA, INC.

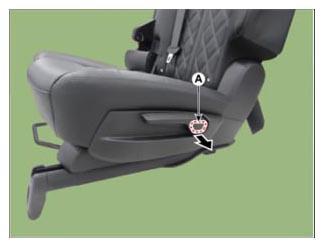

  15. Remove the second row seat recliner lever cap (A). by using a flat-head screwdriver or remover.
    G14942222Courtesy of KIA MOTORS AMERICA, INC.

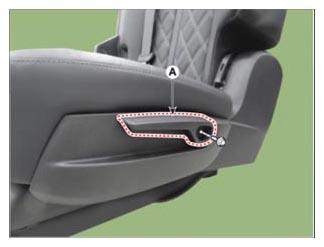

  16. Remove the second row seat recliner lever (A) removing the mounting bolt.
    G14942223Courtesy of KIA MOTORS AMERICA, INC.

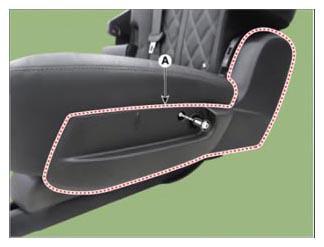

  17. Remove the second row seat outer shield cover (A) by removing the mounting screw.
    G14942224Courtesy of KIA MOTORS AMERICA, INC.

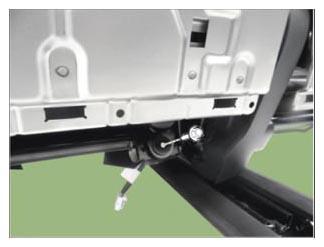

  18. Remove the rear center seat belt lower anchor bolt at the bottom of the second row seat cushion [LH] side.
    G14942225Courtesy of KIA MOTORS AMERICA, INC.

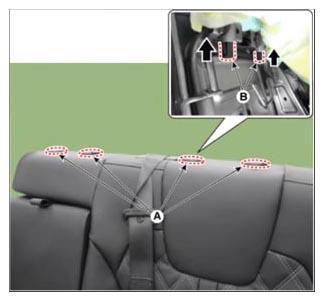

  19. Remove the headrest guide (A) by pressing the lock pin (B).
    G14942226Courtesy of KIA MOTORS AMERICA, INC.

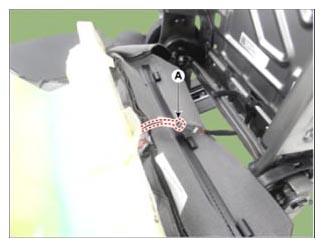

  20. Disconnect the second row seat heating connector (A).
    G14942227Courtesy of KIA MOTORS AMERICA, INC.

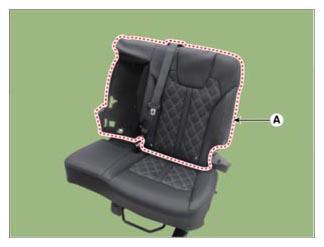

  21. Remove the second row seat back assembly (A) by from the second row seat back frame.
    G14942228Courtesy of KIA MOTORS AMERICA, INC.

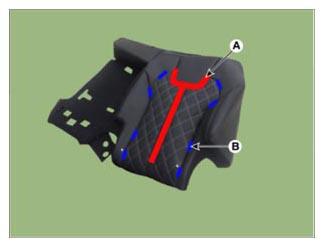

  22. Remove the aplix tape (A) and the hog ring clip (B) from inside the second row seat back cover.
    G14942229Courtesy of KIA MOTORS AMERICA, INC.

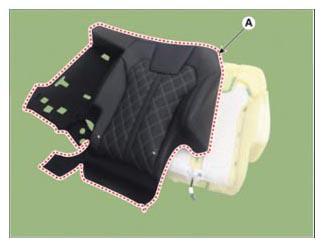

  23. Remove the second row seat back cover (A) from the second row seat back pad.
    G14942230Courtesy of KIA MOTORS AMERICA, INC.

[RH]

  1. Remove the second row seat assembly.

    (Refer to Rear Seat - "[SECOND SEAT ASSEMBLY] ")

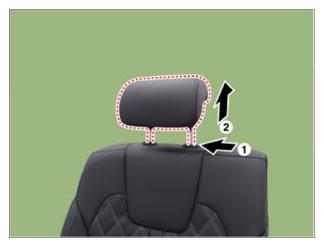

  2. Remove the headrest (A) by pressing the lock pin.
    G14942232Courtesy of KIA MOTORS AMERICA, INC.

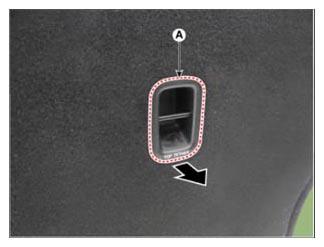

  3. Remove the second row seat child anchor cover (A) by using a flat-head screwdriver or remover.
    G14942233Courtesy of KIA MOTORS AMERICA, INC.

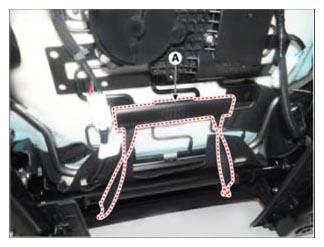

  4. Remove the second row seat cover hooks (A) by using a flat-head screwdriver or remover.
    G14942234Courtesy of KIA MOTORS AMERICA, INC.

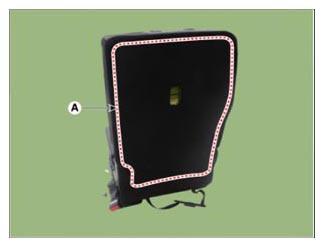

  5. Remove the second row seat strap cover (A) by using a flat-head screwdriver or remover.
    G14942235Courtesy of KIA MOTORS AMERICA, INC.

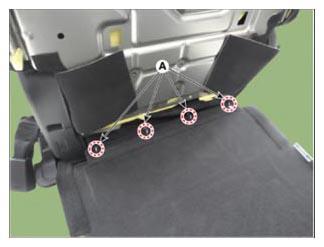

  6. Remove the hog-ring clips (A)
    G14942236Courtesy of KIA MOTORS AMERICA, INC.

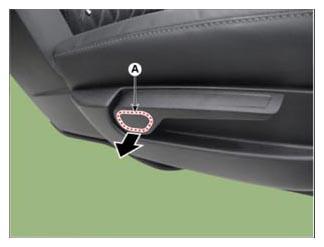

  7. Remove the second row seat recliner lever cap (A) by using a flat-head screwdriver or remover.
    G14942237Courtesy of KIA MOTORS AMERICA, INC.

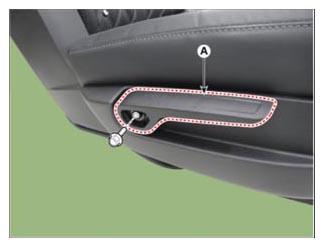

  8. Remove the second row seat recliner lever (A) by removing the mounting bolt.
    G14942238Courtesy of KIA MOTORS AMERICA, INC.

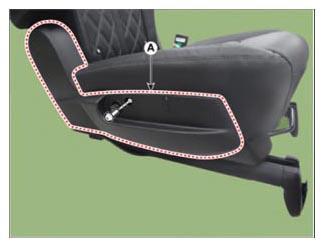

  9. Remove the second row outer shield cover (A). by removing the mounting screw.
    G14942239Courtesy of KIA MOTORS AMERICA, INC.

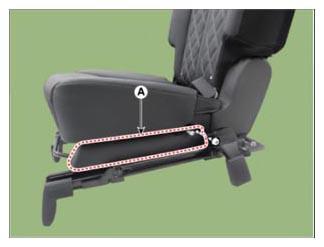

  10. Remove the second row seat inner shield cover (A) by removing the mounting screw.
    G14942240Courtesy of KIA MOTORS AMERICA, INC.

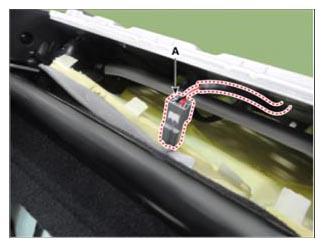

  11. Disconnect the second row seat heating connector (A).
    G14942241Courtesy of KIA MOTORS AMERICA, INC.

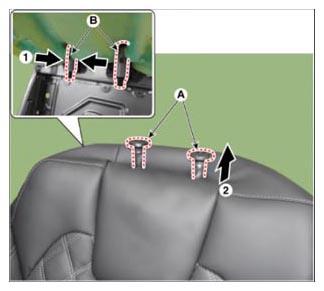

  12. Remove the head rest guide (A) by pressing the lock pin (B).
    G14942242Courtesy of KIA MOTORS AMERICA, INC.

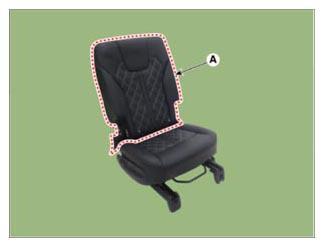

  13. Remove the second row seat back assembly (A) by from the second row seat back frame.
    G14942243Courtesy of KIA MOTORS AMERICA, INC.

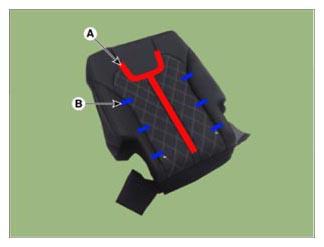

  14. Remove the Velcro tape (A) and the hog ring clip (B) from inside the second row seat back cover.
    G14942244Courtesy of KIA MOTORS AMERICA, INC.

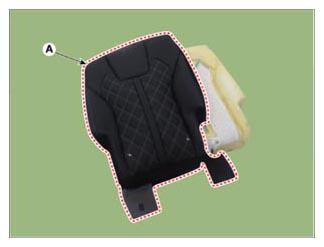

  15. Remove the second row seat back cover (A) from the second row seat back pad.
    G14942245Courtesy of KIA MOTORS AMERICA, INC.
