[6/7 Seat]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

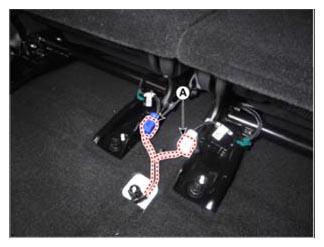

Disconnect the third row seat connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

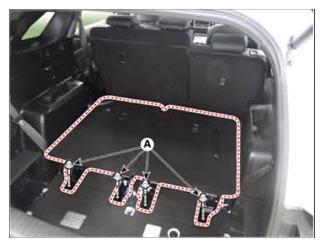

Remove the mounting bolts (A) on the back of the third row seat assembly.
Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

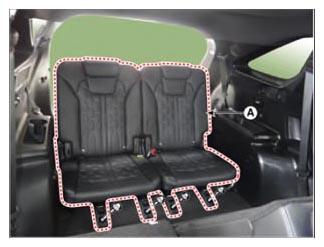

Remove the third row seat assembly (A) by removing the mounting bolts on the front.
Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
