[5/7 Seat]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

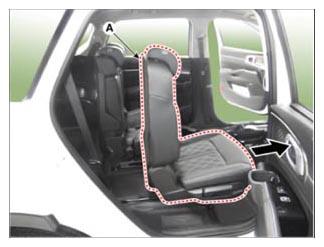

Push the second row seat assembly [RH] (A) as far forward as possible.

Courtesy of KIA MOTORS AMERICA, INC.

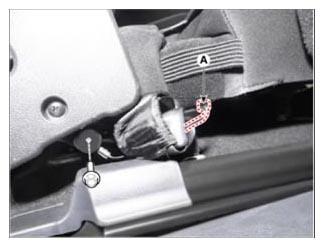

Disconnect the second row center belt buckle connector (A) after removing the mounting bolt.
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Removing the mounting bolts.
Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)

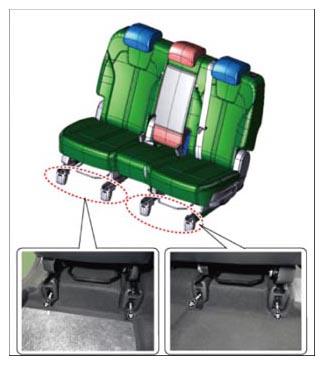

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

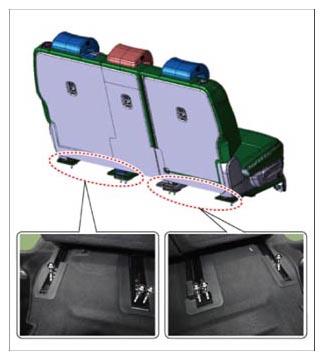

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.

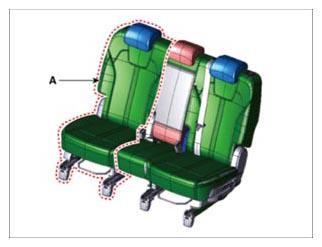

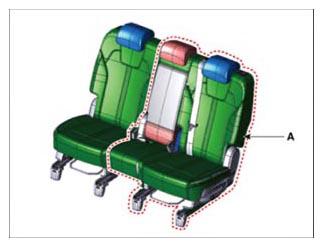

Remove the second row seat assembly (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

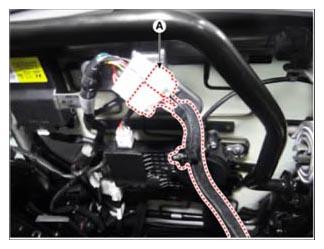

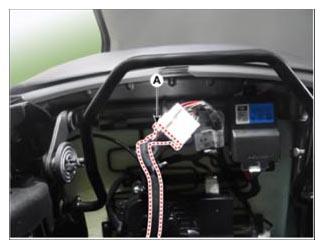

Disconnect the second row seat main connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
