Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Front Driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

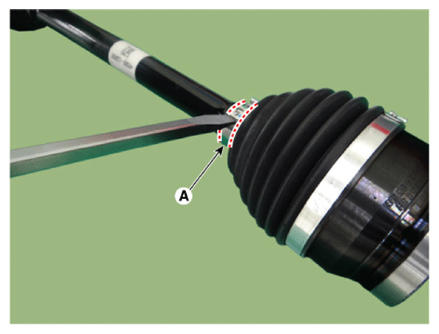

Use a flat-head screwdriver to remove the small diameter boot band (A).

Courtesy of KIA MOTORS AMERICA, INC.

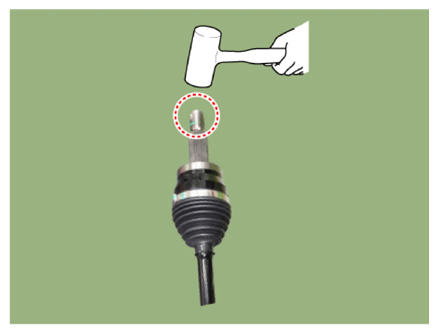

Using a plastic mallet, lower the top of the joint spline 2 - 3 times.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful not to damage parts when using a plastic hammer.

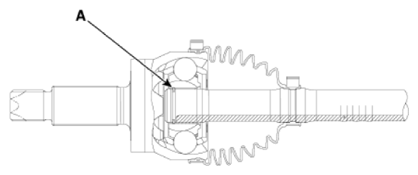

- Shock gives the spacing of the circlip (A) fixed to the inside.
Courtesy of KIA MOTORS AMERICA, INC.

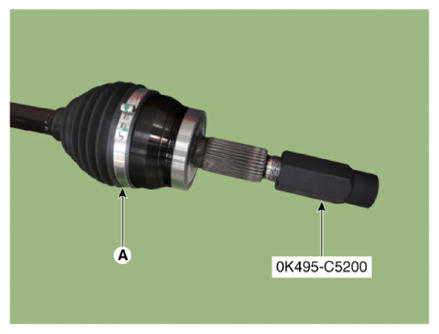

Tighten the SST (0K495-C5200) on the spline of the driveshaft (A).

Courtesy of KIA MOTORS AMERICA, INC.

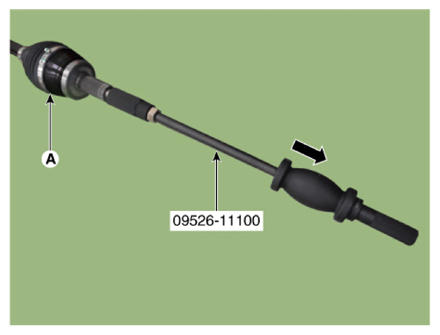

After fixing the driveshaft to the vise, remove the joint assembly (A) using a SST (09526-11100).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Hit the sliding hammer strongly in the direction of the arrow and remove it at once.
- If you can't remove it once or twice, it is impossible to remove as circlip is caught inside.
  (Replace the driveshaft assembly if it cannot be removed.)

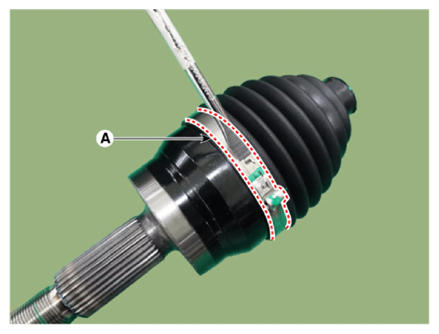

Use a flat-head screwdriver or remover to remove the large diameter boot band (A).

Courtesy of KIA MOTORS AMERICA, INC.

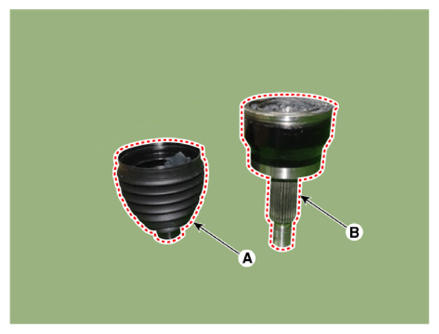

Remove the joint boot (A) and the joint assembly (B).

Courtesy of KIA MOTORS AMERICA, INC.

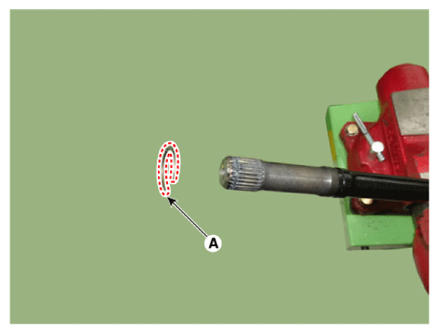

Remove the circlip (A) from the driveshaft.

Courtesy of KIA MOTORS AMERICA, INC.
