Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When assembling, be careful not to let dust and foreign substances enter.
  • Driveshaft joints require special grease, so do not add any other type of grease.
  • Boot bands must use the new one.

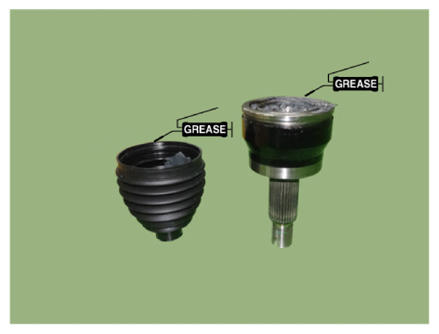

  1. Apply grease within the joint housing and the boot.
    G14957760Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Use the grease supplied with joint kits/boot kits.
    • Driveshaft joints require special grease, so do not add any other type of grease.
    • A certain amount of grease (2-30%) is applied in the boot.

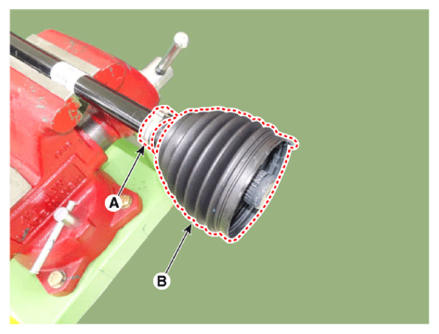

  2. Install the wheel side boot band (A) and boot (B) to the driveshaft.
    G14957761Courtesy of KIA MOTORS AMERICA, INC.

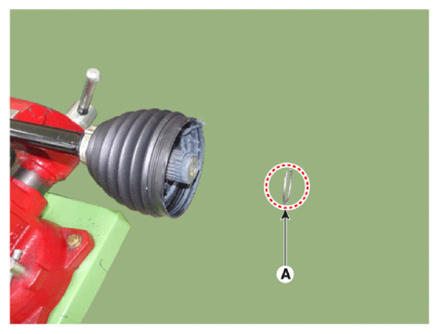

  3. Fit the circlip (A) to the joint.
    G14957762Courtesy of KIA MOTORS AMERICA, INC.
  4. Insert the boot into the joint.

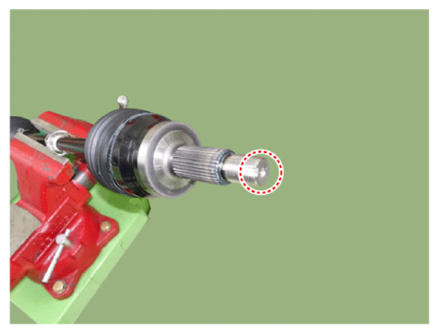

  5. Using a plastic mallet, lower the top of the joint spline 2~3 times.
    G14957763Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to damage parts when using a plastic hammer.

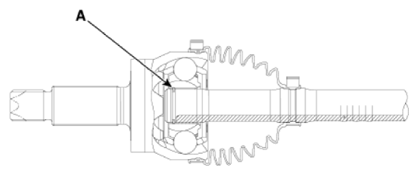

    • After installing, the joint assembly and circlip (A) see that it is properly seated.
    • There should be a feeling of squeezing when the joint assembly is pushed and pulled.
    G14957764Courtesy of KIA MOTORS AMERICA, INC.

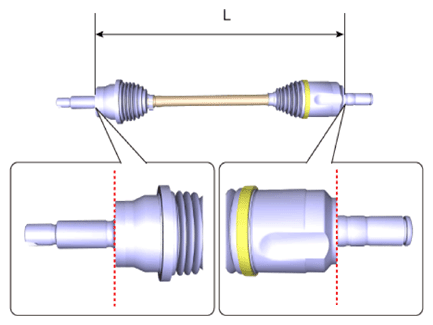

  6. To adjust the air in the wheel side boot, set the distance between the drive shafts to the standard values as shown in the table below, then install the boot band.
    Engine Distance (L) mm (in.)
    LH side RH side
    GAMMA II 1.6 T-GDI PHEV 538.3 (21.1929) 519.7 (20.4606)
    G14957765Courtesy of KIA MOTORS AMERICA, INC.

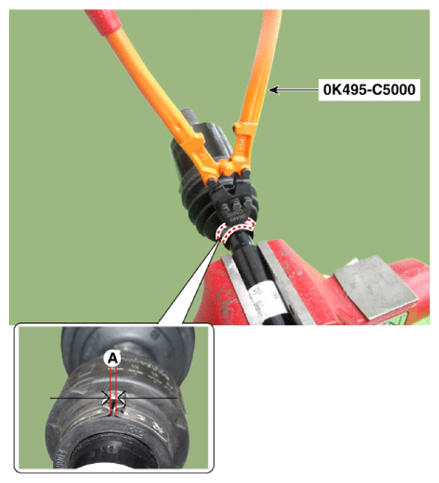

  7. Install the small diameter boot band by using the SST (0K495-C5000).

    Clearance (A):  2.0 mm (0.0787 in.) or less

    G14957766Courtesy of KIA MOTORS AMERICA, INC.

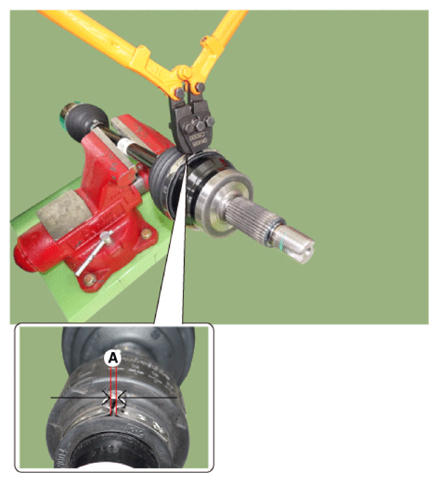

  8. Install the large diameter boot band by using the SST (0K495-C5000).

    Clearance (A):  2.0 mm (0.0787 in.) or less

    G14957767Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When attaching the small diameter band, fasten it in line by clamping the boot as shown (A).
    G14957768Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the Front Driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  10. Check the front alignment.

    (Refer to Suspension System - "ALIGNMENT ")
