Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

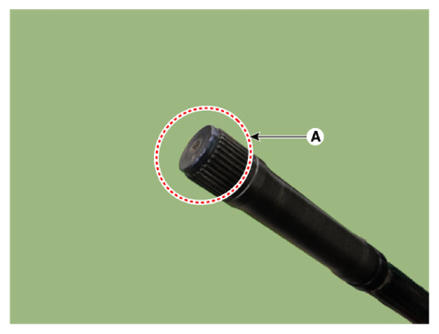

  1. Check spline (A) for damage/wear/crack.
    G14957759Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the boot for water or foreign objects.
  3. Check joint assembly for damage/wear/crack and rust.
  4. Replace any defective parts.
