Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Drive shaft joints require special grease, so do not add any other type of grease.
  • When removing the boot band, the boot band must be brand new.
  1. Remove the Front Driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove both boot bands from the transaxle side joint.

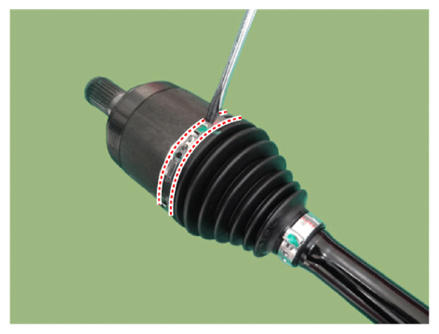

    G14957732Courtesy of KIA MOTORS AMERICA, INC.

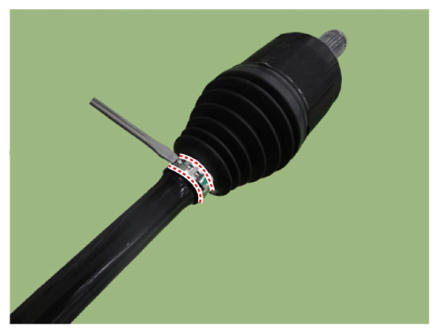

    G14957733Courtesy of KIA MOTORS AMERICA, INC.

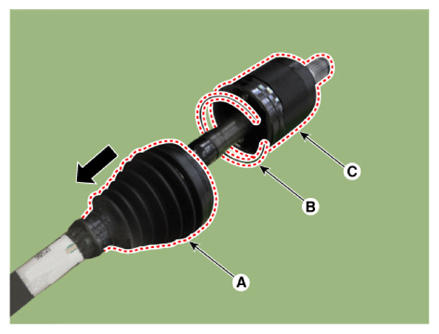

  3. Remove the joint stopper ring (B) and the joint housing (C) after separating the transaxle side joint boot (A) in the direction of the arrow.
    G14957734Courtesy of KIA MOTORS AMERICA, INC.

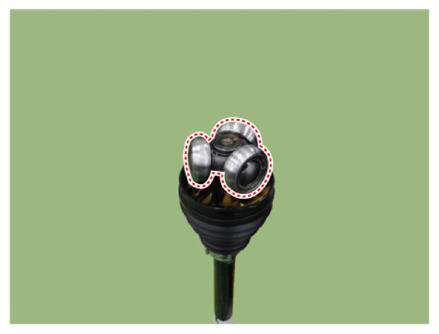

  4. Remove the bearing from the spider assembly.
    G14957735Courtesy of KIA MOTORS AMERICA, INC.

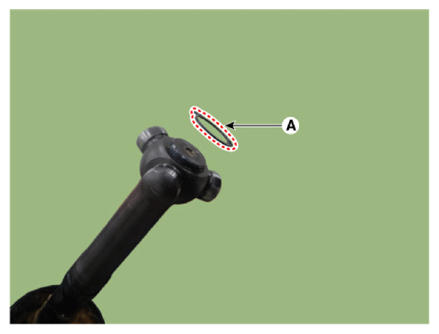

  5. Use the snap ring pliers to remove the snap ring (A).
    G14957736Courtesy of KIA MOTORS AMERICA, INC.

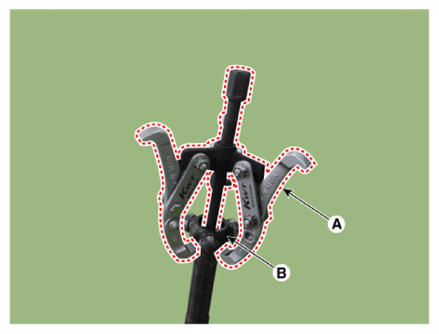

  6. Remove spider assembly (B) from driveshaft using puller (A).
    G14957737Courtesy of KIA MOTORS AMERICA, INC.

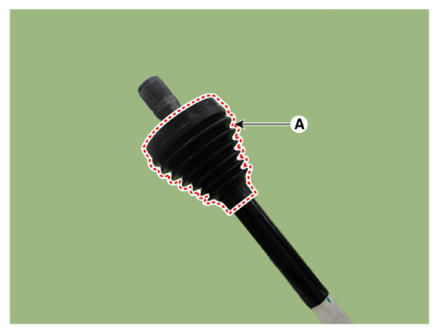

  7. Remove the transaxle side joint boot (A).
    G14957738Courtesy of KIA MOTORS AMERICA, INC.
  8. Clean the spider assembly and joint housing.
