Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When assembling, be careful not to let dust and foreign substances enter.
  • Driveshaft joints require special grease, so do not add any other type of grease.
  • Boot bands must use the new one.

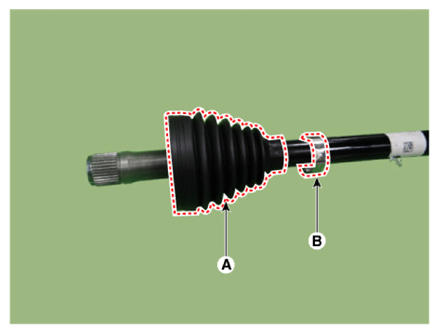

  1. Install the transaxle side boot (A) and boot band (B) on the driveshaft.
    G14957740Courtesy of KIA MOTORS AMERICA, INC.

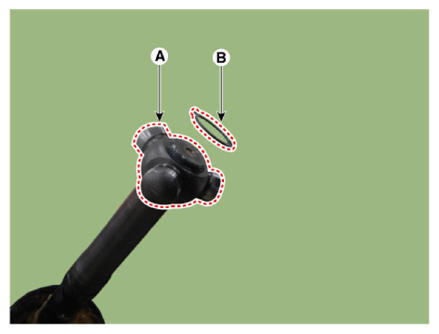

  2. Install it in the order of spider assembly (A) and snap ring (B) in the driveshaft spline.
    G14957741Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Note the orientation of the spider assembly.

      If the spider assembly is not properly oriented, the snap ting will not seat properly.

    • When replacing the joint assembly, assemble using the new parts included in the joint kit.
    • Snap ring must use a new one.

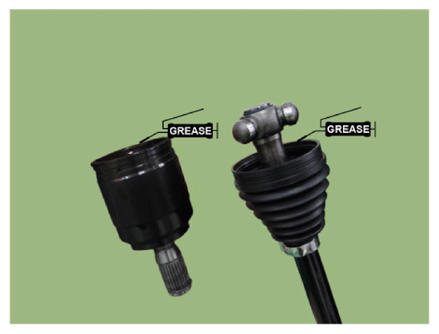

  3. Apply the specified grease in the joint housing and boot.
    G14957742Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Use the grease supplied with joint kits/boot kits.
    • Driveshaft joints require special grease, so do not add any other type of grease.
    • A certain amount of grease (2-30%) is applied in the boot.

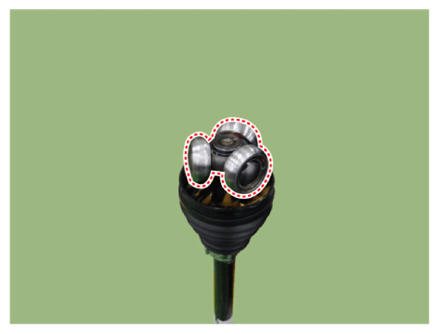

  4. Install the bearing on the spider assembly.
    G14957743Courtesy of KIA MOTORS AMERICA, INC.

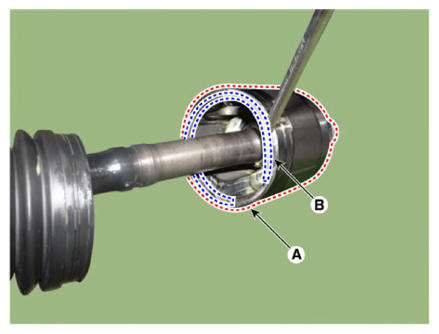

  5. Assemble the transaxle side joint housing (A) to the driveshaft and mount the stopper ring (B).
    G14957744Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Check that the stopper ring is correctly mounted in the joint housing.
    • Make sure that the joint housing does not come out when pulled out.

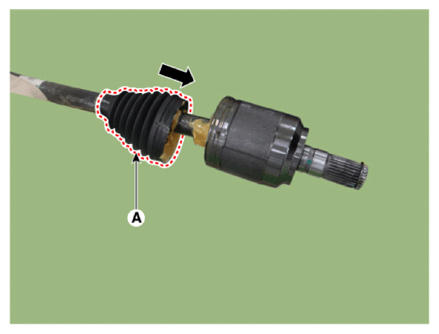

  6. Install the boot (A) on the joint housing.
    G14957745Courtesy of KIA MOTORS AMERICA, INC.

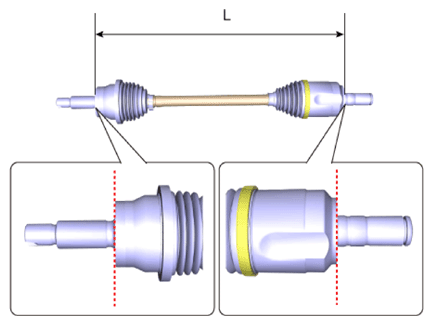

  7. Set the distance between the driveshafts to the standard value and install the boot band to regulate the air in the transaxle boot.
    Engine Distance (L) mm (in.)
    LH side RH side
    GAMMA II 1.6 T-GDI PHEV 538.3 (21.1929) 519.7 (20.4606)
    G14957746Courtesy of KIA MOTORS AMERICA, INC.

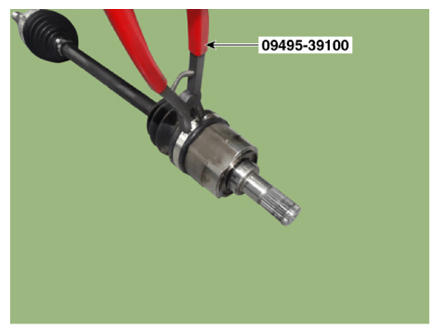

  8. Install the large diameter boot band by using the SST (09495-39100).
    G14957747Courtesy of KIA MOTORS AMERICA, INC.

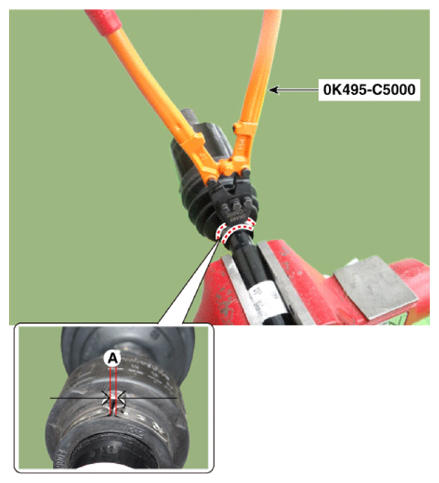

  9. Install the small diameter boot band by using the SST (0K495-C5000).

    Clearance (A):  2.0 mm (0.0787 in.) or less

    G14957748Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When attaching the small diameter band, fasten it in by clamping the boot as shown (A).
    G14957749Courtesy of KIA MOTORS AMERICA, INC.
  10. Install the Front Driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  11. Check the front alignment.

(Refer to Suspension System - "ALIGNMENT ")
