Process Overview: Notes
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

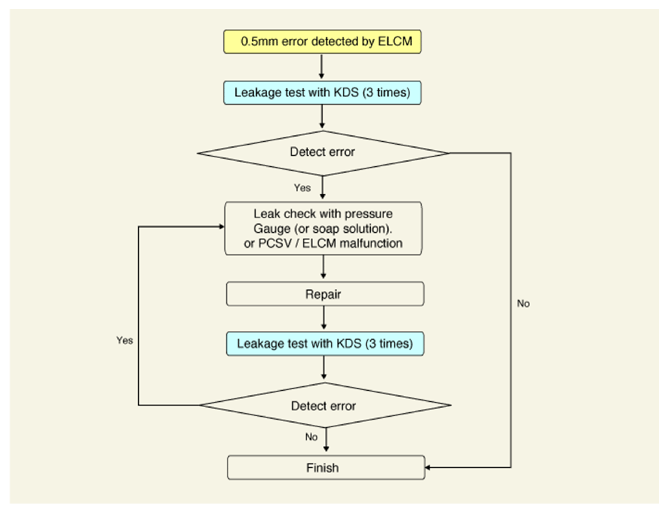

If a leak is detected by ELCM, inspect the vehicle as the flow chart below to distinguish whether the error was caused by leakage of fuel system or ELCM itself.
CAUTION:
If you perform leakage diagnosis using a smoke tester, the ELCM may be damaged due to the oil ingredients contained in the smoke. Therefore, never use a smoke tester for leakage diagnosis.
