Leakage Test With KDS

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

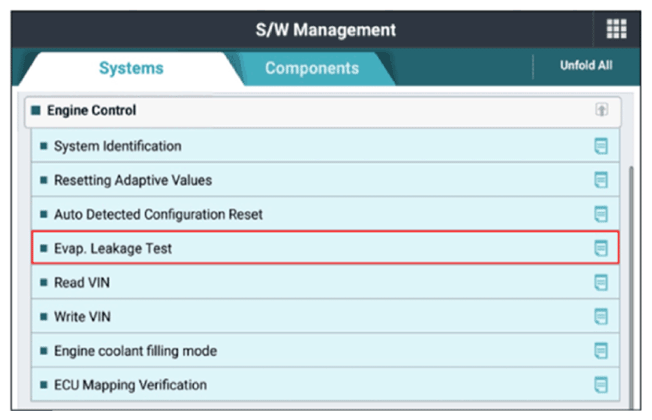

Select "Evap. Leakage Test".

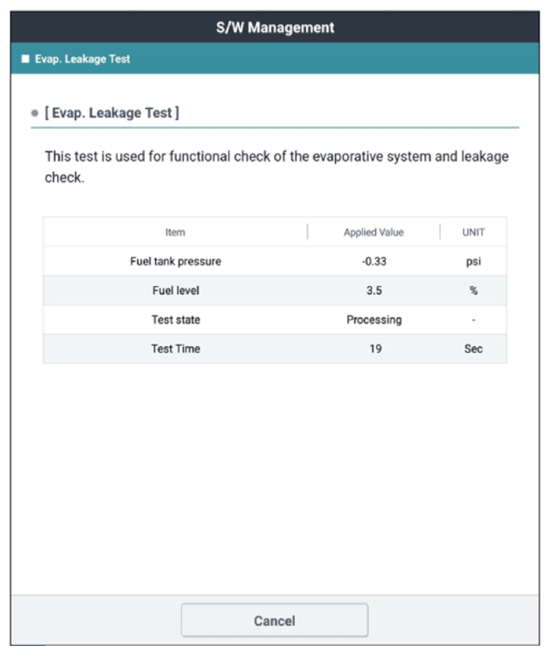

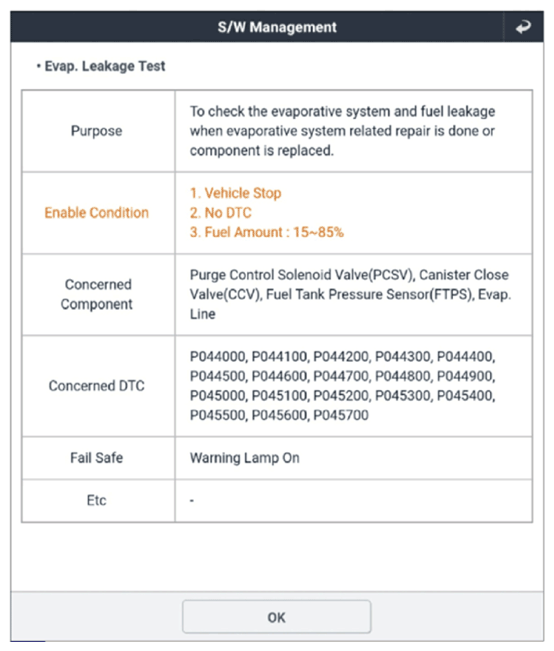

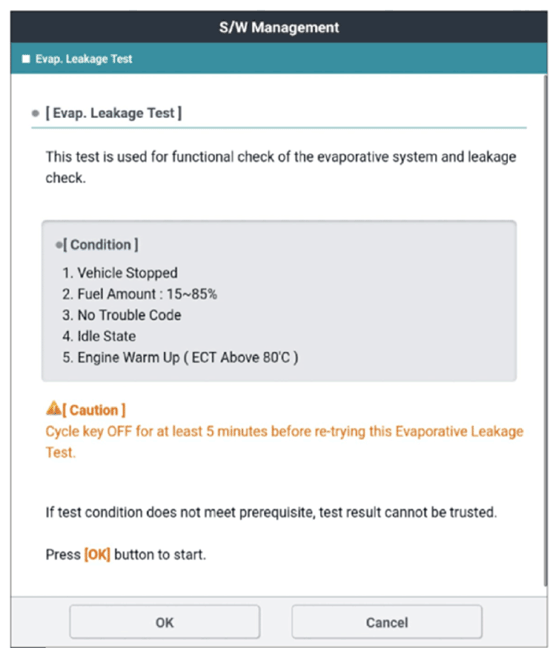

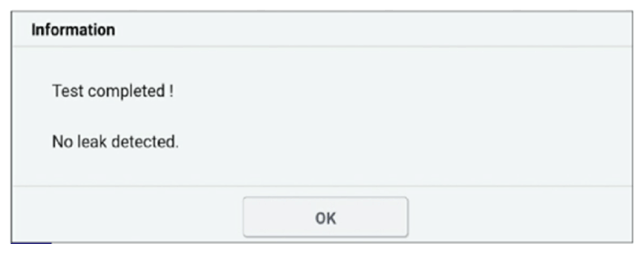

Proceed with the test according to the screen introductions.
NOTE:
[EVAP. Leakage Test Condition]
- Ignition key on, Engine at idle
- No Trouble Code
- Fuel Level: 15-85%
- Select Lever Position: P or N
- Fuel door close
- ECT: Below 105°C (221°F)
