Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

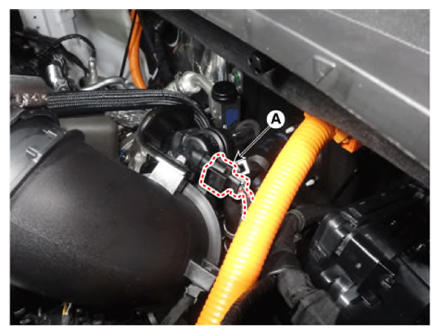

  2. Disconnect the Purge Control Solenoid Valve (PCSV) connector (A).
    G14956852Courtesy of KIA MOTORS AMERICA, INC.

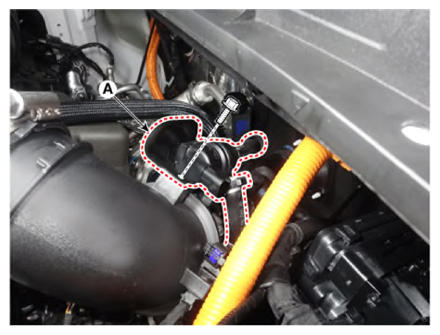

  3. Separate the PCSV & hose (A) after removing the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14956853Courtesy of KIA MOTORS AMERICA, INC.

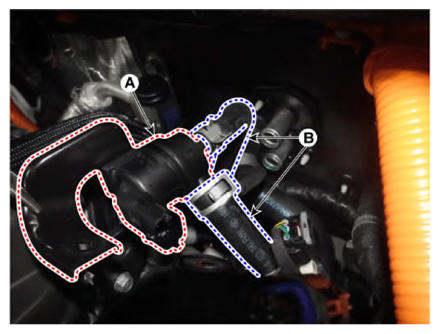

  4. Remove the PCSV (A) after disconnecting the vapor hoses (B).
    G14956854Courtesy of KIA MOTORS AMERICA, INC.
