Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the air duct (A) by removing the mounting nuts.
    G14956846Courtesy of KIA MOTORS AMERICA, INC.

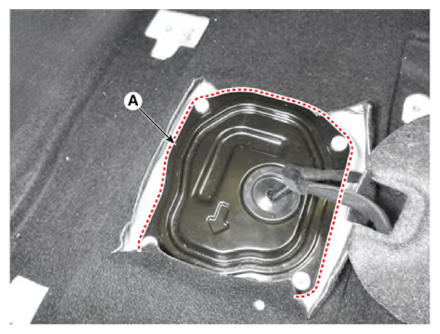

  4. Remove the fuel pump service cover (A).
    G14956847Courtesy of KIA MOTORS AMERICA, INC.

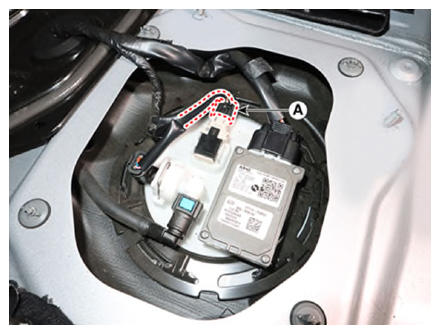

  5. Disconnect the Fuel Tank Pressure Sensor (FTPS) connector (A).
    G14956848Courtesy of KIA MOTORS AMERICA, INC.

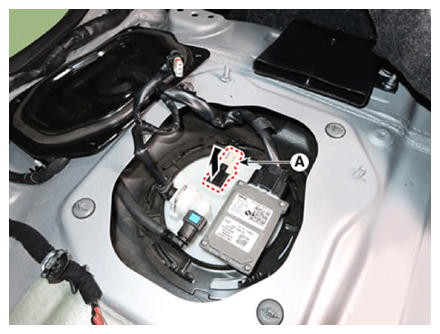

  6. Remove the FTPS (A) by pulling it in the vertical direction from the fuel pump after releasing the hook.
    G14956849Courtesy of KIA MOTORS AMERICA, INC.
