Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel tank.

    (Refer to Engine Control/Fuel System - "FUEL TANK ")

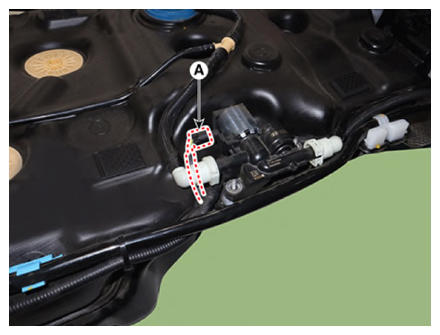

  2. Disconnect the Fuel Tank Isolation Valve (FTIV) connector (A).
    G14956841Courtesy of KIA MOTORS AMERICA, INC.

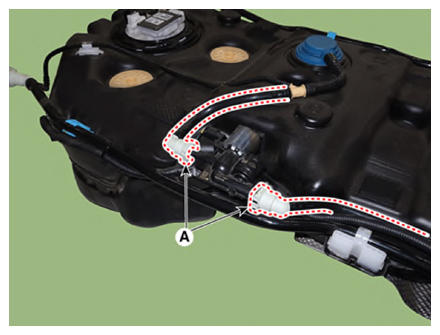

  3. Separate the vapor hoses (A).
    G14956842Courtesy of KIA MOTORS AMERICA, INC.

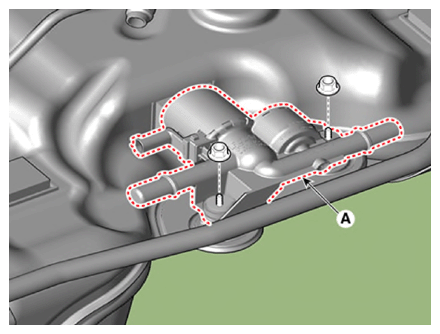

  4. Remove the FTIV (A) by removing the mounting nuts.

    Tightening torque:

    3.0 - 5.0 N.m (0.31 - 0.51 kgf.m, 2.2 - 3.7 lb.ft, 26.9 - 44.3 lb.in)

    G14956843Courtesy of KIA MOTORS AMERICA, INC.
