Description And Operation: Description

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

A fuel filler cap features a ratcheting mechanism to reduce incorrect installation and seal the fuel system from leaks. After the gasket on the fuel filler cap and the filler neck flange contact each other, the ratchet produces a loud clicking noise indicating that the fuel cap has been properly installed and the fuel system is sealed.

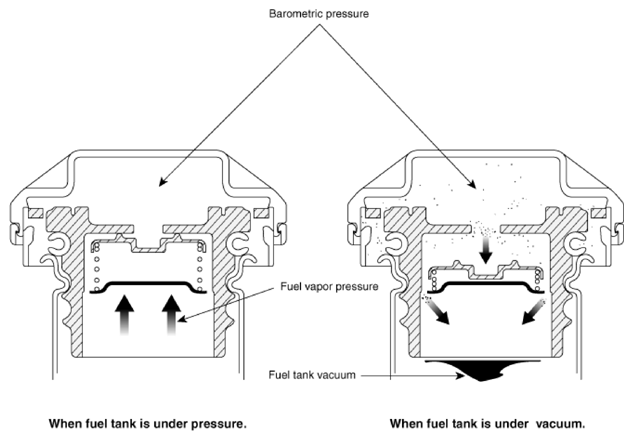

G14956834Courtesy of KIA MOTORS AMERICA, INC.
