Section 120 (Evaporative Emission Control System (PHEV))
>>
Evaporation Leak Check Module (ELCM)
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

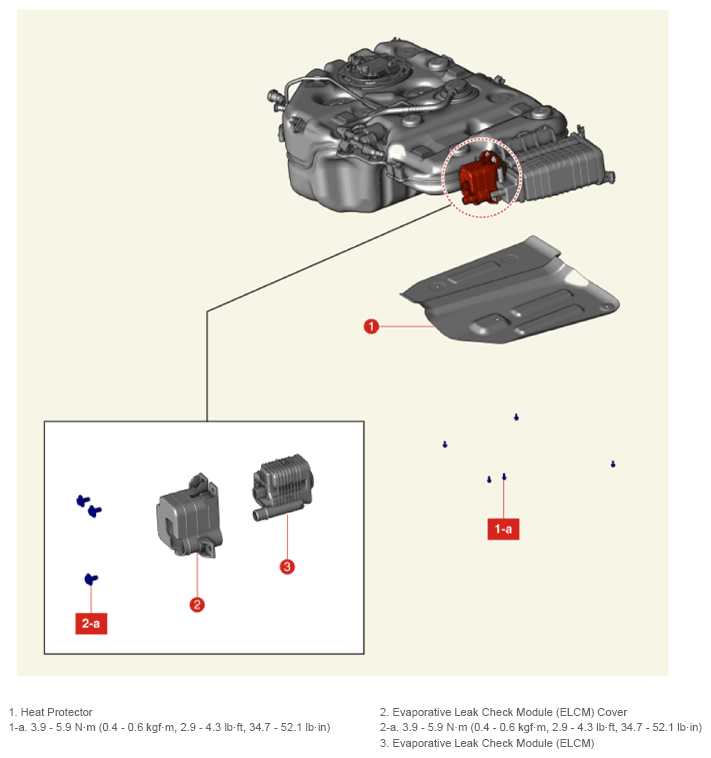

Fig 1: Evaporation Leak Check Module Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
