Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

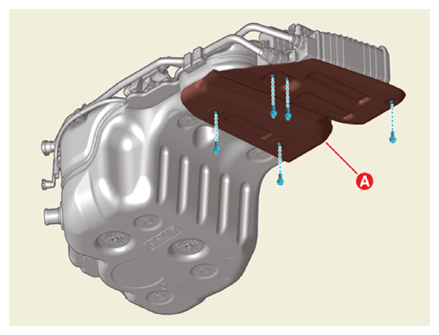

Remove the heat protector (A) after removing the bolts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

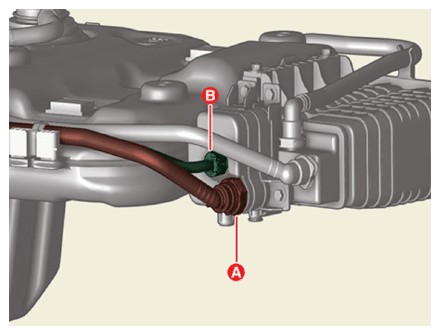

Disconnect the connector (A, B).
1. Vapor hose connector
2. Evaporative Leak Check Module (ELCM) connector
Courtesy of KIA MOTORS AMERICA, INC.

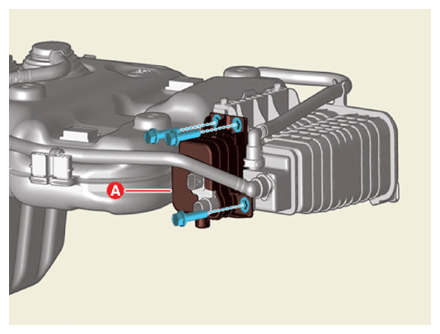

Remove the ELCM cover (A) after removing the bolts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

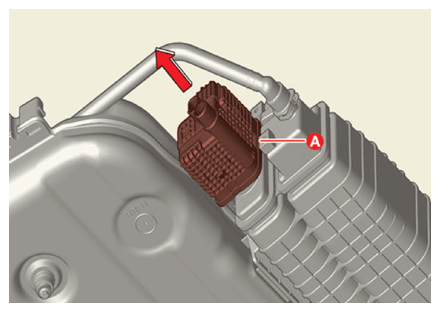

Remove the ELCM (A) by pulling it in the arrow of direction.

Courtesy of KIA MOTORS AMERICA, INC.

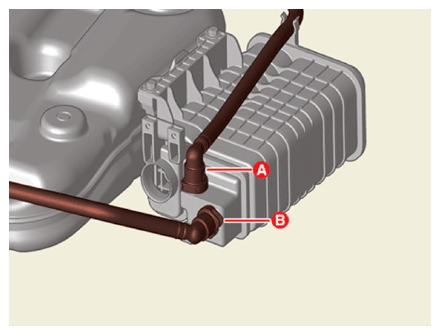

Disconnect the vapor hose connector (A, B)

Courtesy of KIA MOTORS AMERICA, INC.

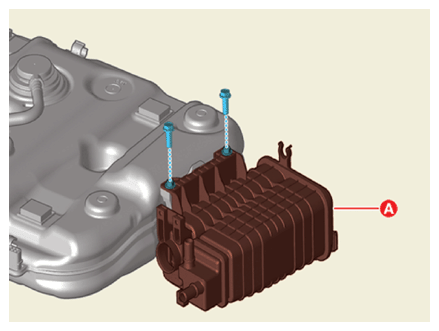

Remove the canister (A) after removing the bolts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
