Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Release the residual pressure in the fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the engine control module.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Separate the fuel feed hose (A) after releasing the fixing clip.

Courtesy of KIA MOTORS AMERICA, INC.

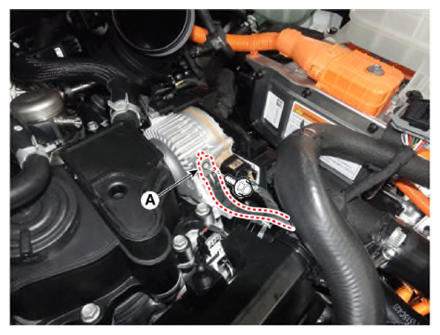

Disconnect the ground wiring (A) after removing the mounting bolt.
Tightening torque:

7.9 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

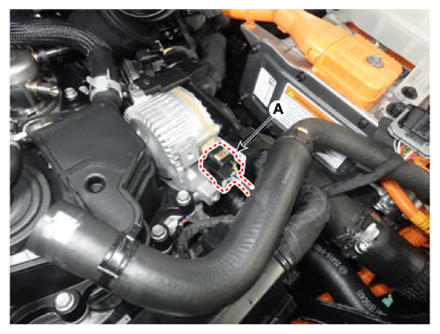

Disconnect the CVVD actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

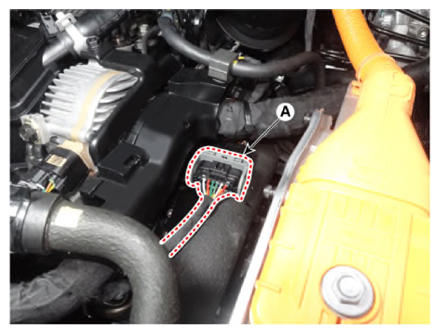

Disconnect the engine wiring connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

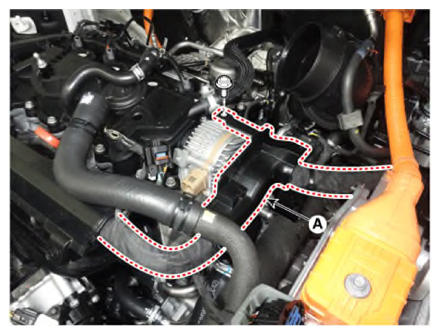

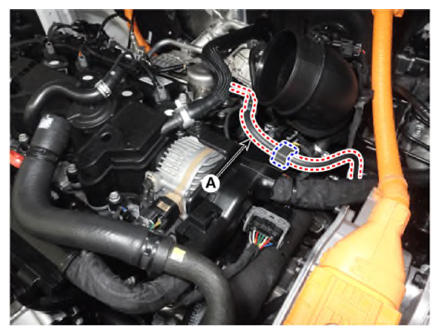

Separate the engine wiring protector (A) after removing the mounting bolt.
Tightening torque:

7.9 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

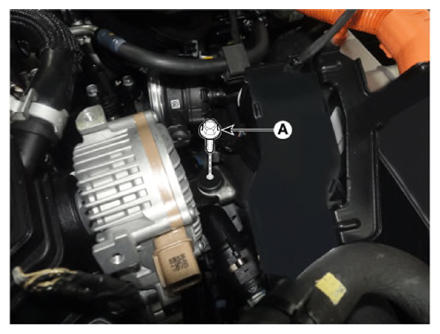

Remove the intercooler inlet pipe stay bolt (A).
Tightening torque:

18.7 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.8 - 17.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

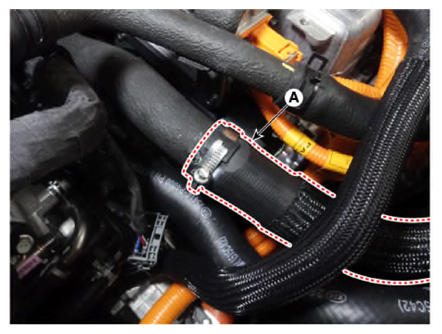

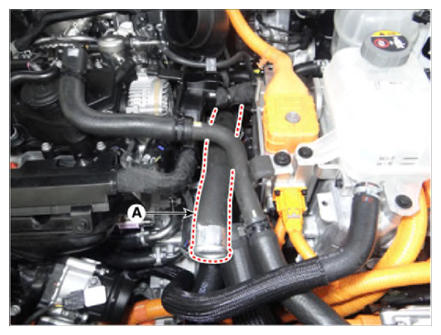

Disconnect the intercooler hose (A) after removing the clamp.

Courtesy of KIA MOTORS AMERICA, INC.

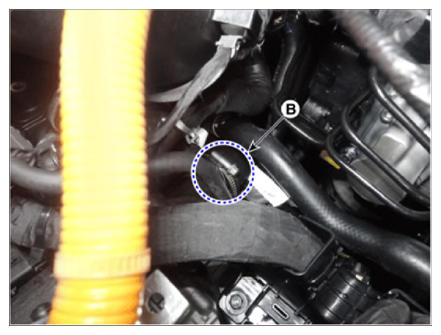

Remove the intercooler inlet pipe (A) after removing the clamp (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

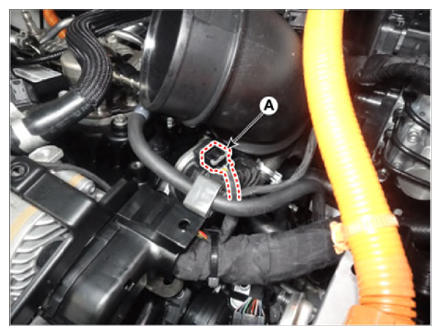

Disconnect the active purge pump connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

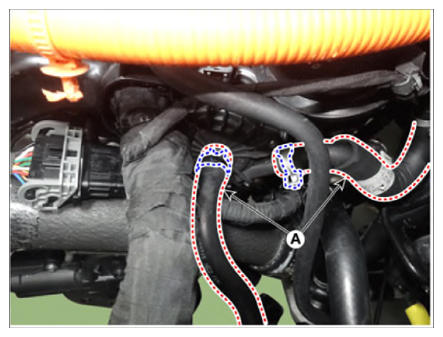

Disconnect the hoses (A) from the active purge pump after releasing the clamps.

Courtesy of KIA MOTORS AMERICA, INC.

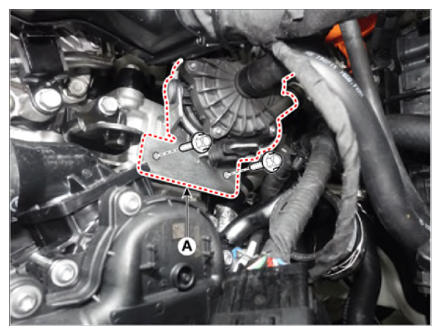

Remove the active purge pump (A) after removing the mounting bolts.
Tightening torque:

18.7 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.8 - 18.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
