Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ECM connector	3, 26, 60 (power)	Chassis ground	-	B+
	TCM connector	16, 67, 68 (power)	Chassis ground	-	B+
	IEB connector	1, 1, 2, 6 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ECM connector	1, 2, 4 (ground)	Chassis ground	-	Approx. below 1Ω
	TCM connector	71, 73, 74 (ground)	Chassis ground	-	Approx. below 1Ω
	IEB connector	14, 46 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "ON".	ICU connector	20 (C-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	ICU connector	19 (C-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ICU connector	20 (C-CAN high)	IEB connector	4 (C-CAN high)	Approx. below 1Ω
	ICU connector	19 (C-CAN low)	IEB connector	5 (C-CAN low)	Approx. below 1Ω
Ignition "ON".	ICU connector	17 (P-CAN high)	Chassis ground	-	Fig.2
Ignition "ON".	ICU connector	18 (P-CAN low)	Chassis ground	-	Fig.2
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ICU connector	17 (P-CAN high)	ECM connector	62 (P-CAN high)	Approx. below 1Ω
	ICU connector	18 (P-CAN low)	ECM connector	45 (P-CAN low)	Approx. below 1Ω
	ICU connector	17 (P-CAN high)	PCM connector	42 (P-CAN high)	Approx. below 1Ω
	ICU connector	18 (P-CAN low)	PCM connector	41 (P-CAN low)	Approx. below 1Ω

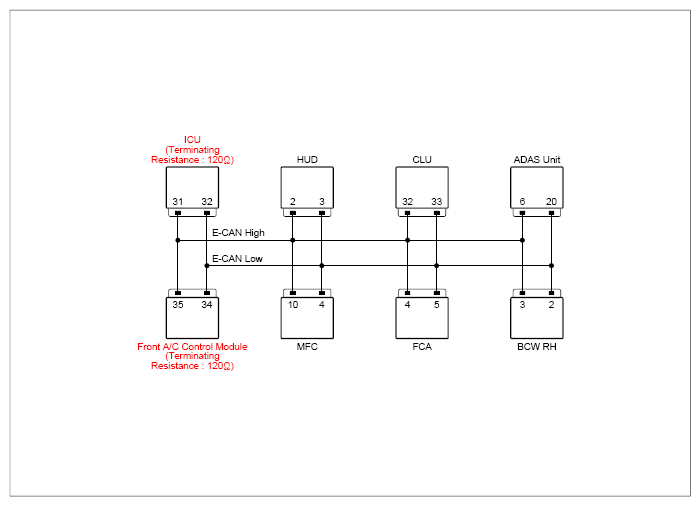

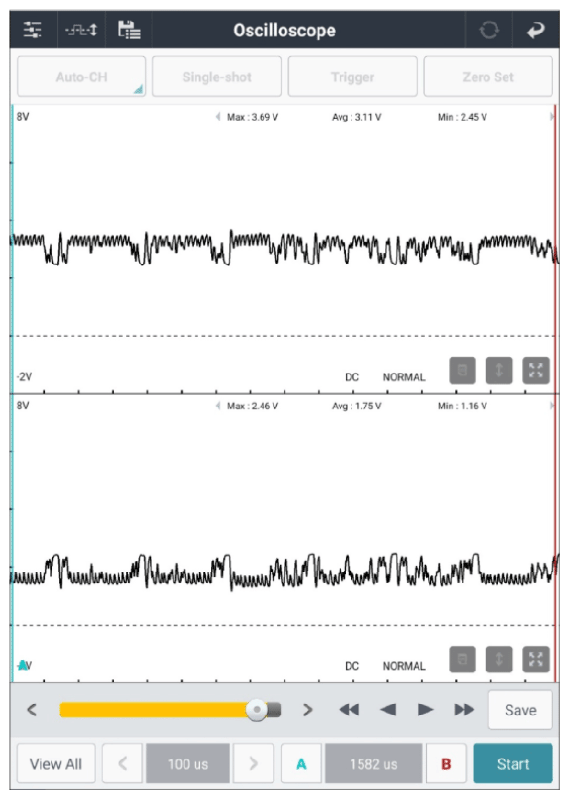

Ignition "ON".	PCA-R connector	6 (E-CAN high)	Chassis ground	-	Fig.3
Ignition "ON".	PCA-R connector	20 (E-CAN low)	Chassis ground	-	Fig.3
Ignition "OFF" Disconnect the electrical connector(s) from the concerned component.	PCA-R connector	6 (E-CAN high)	ICU connector	31 (E-CAN high)	Approx. below 1Ω
	PCA-R connector	20 (E-CAN low)	ICU connector	32 (E-CAN low)	Approx. below 1Ω

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors and DTC still occurs, replace the ECM or TCM or IEB and Go to "Verification Of Repair " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
