Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

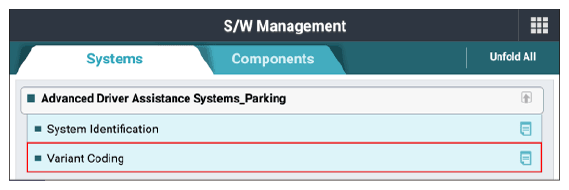

G14963387Courtesy of KIA MOTORS AMERICA, INC.

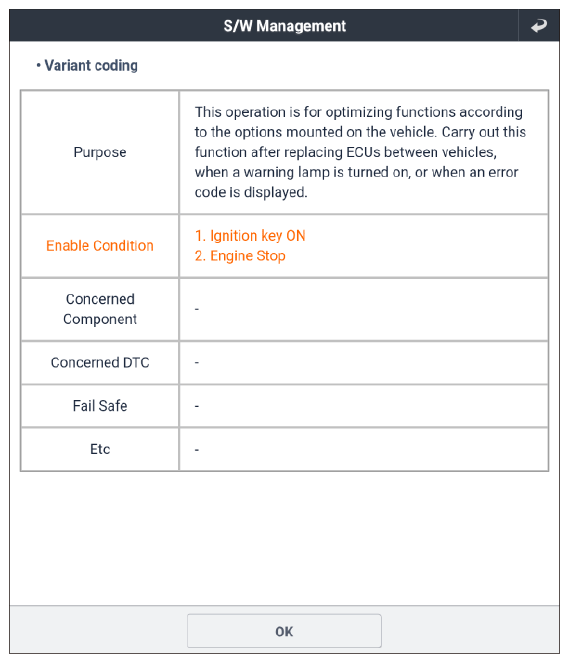

G14963388Courtesy of KIA MOTORS AMERICA, INC.

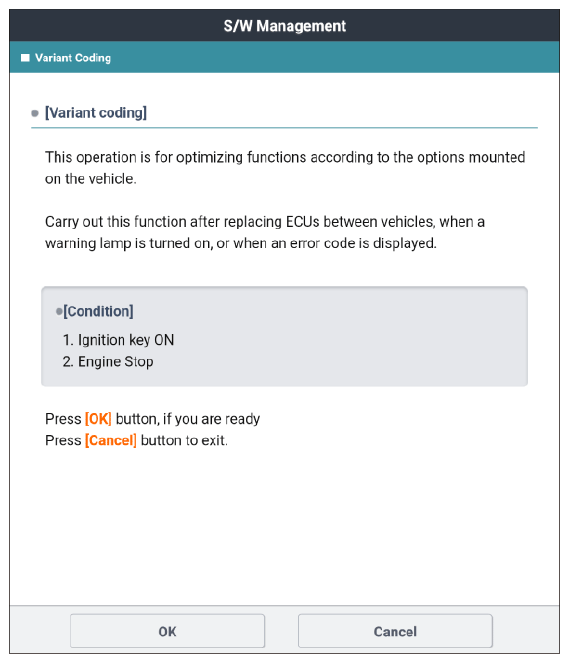

G14963389Courtesy of KIA MOTORS AMERICA, INC.

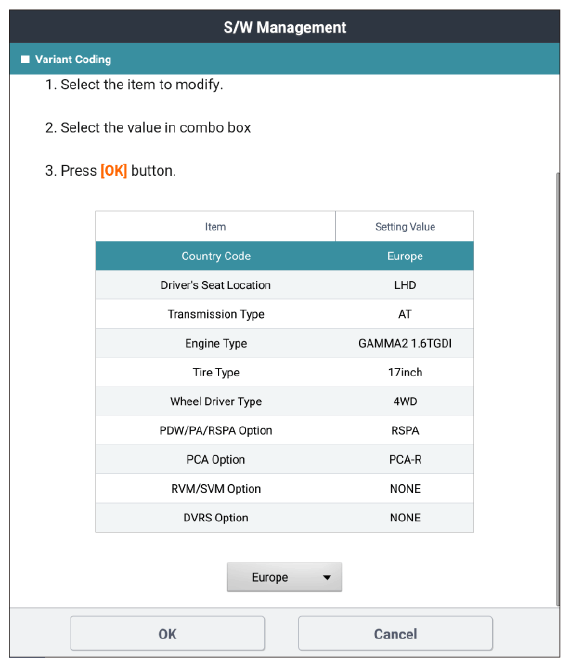

G14963390Courtesy of KIA MOTORS AMERICA, INC.
