Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

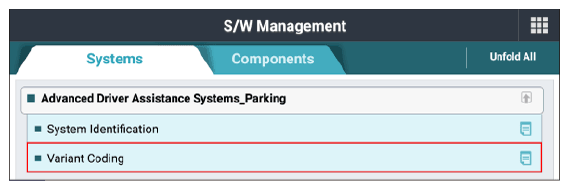

G14963283Courtesy of KIA MOTORS AMERICA, INC.

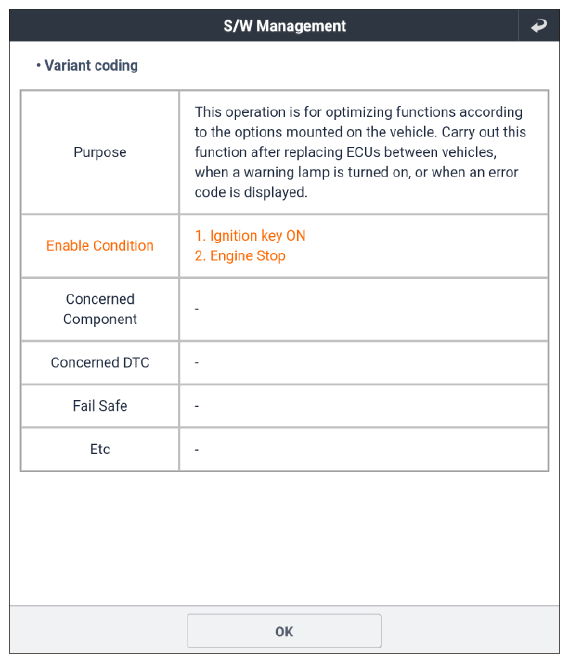

G14963284Courtesy of KIA MOTORS AMERICA, INC.

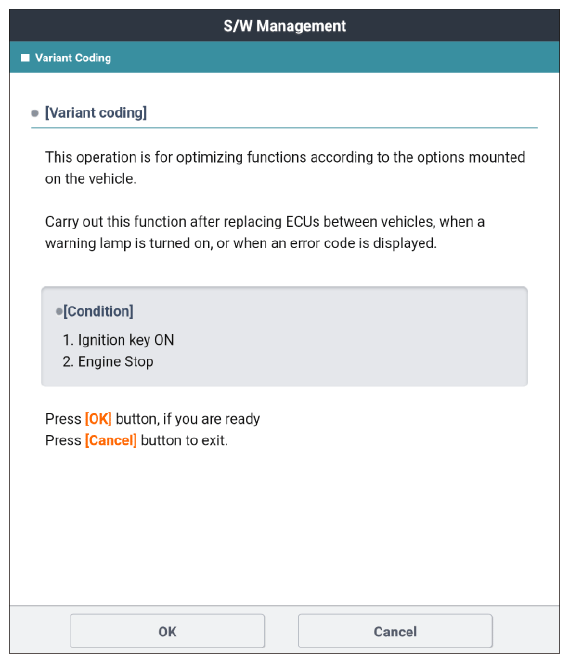

G14963285Courtesy of KIA MOTORS AMERICA, INC.

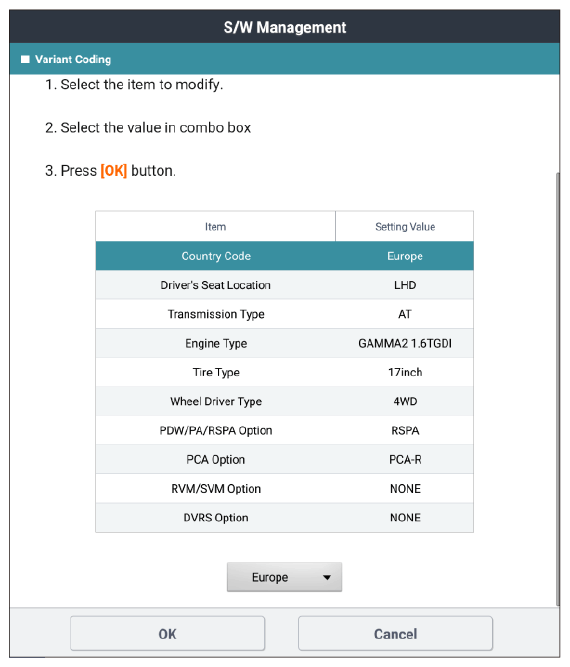

G14963286Courtesy of KIA MOTORS AMERICA, INC.
