Monitor DTC Status

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

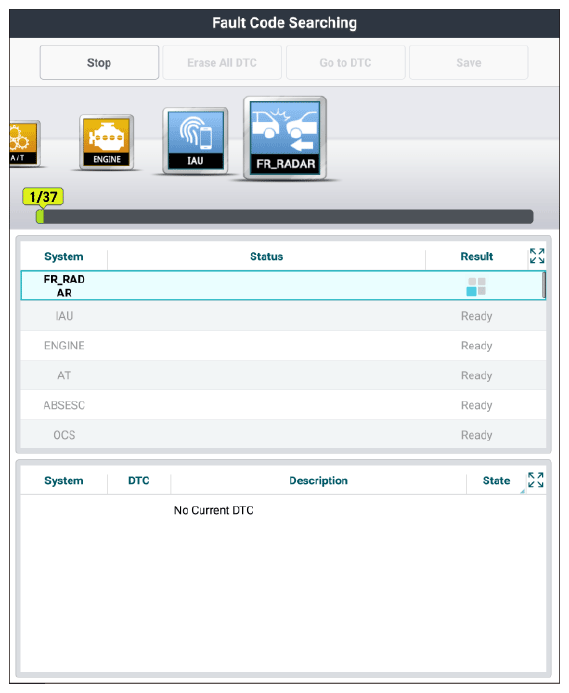

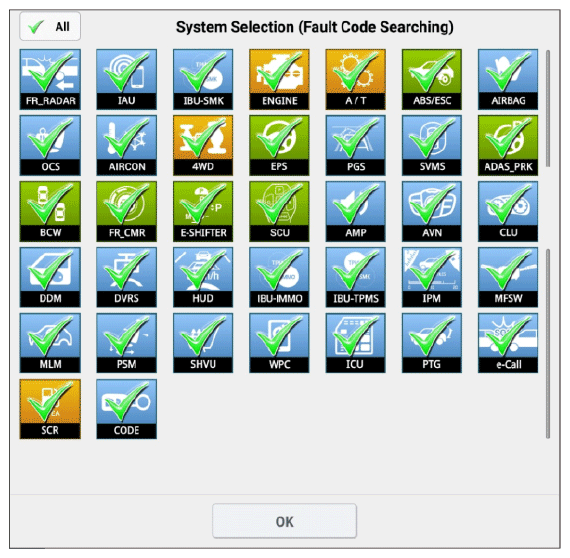

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Select correct "Vehicle Model", "Year", and "Engine Type" with KDS. Select CAN related system. Select "Fault Code Searching".	Fig.1 to 2

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "Verification Of Repair " procedure.

History/Pending Fault

Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
If problem still occurs, go to "WIRING INSPECTION " procedure.
