Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECM connector | 3, 26, 60 (power) | Chassis ground | - | B+ |
|
ECM connector | 1, 2, 4 (ground) | Chassis ground | - | Approx. below 1Ω |
|
ICU connector | 17 (P-CAN high) | Chassis ground | - | Fig.1 |
| ICU connector | 18 (P-CAN low) | Chassis ground | - | ||
|
ICU connector | 17 (P-CAN high) | ECM connector (2.2TCII) | 62 (P-CAN high) | Approx. below 1Ω |
| ICU connector | 18 (P-CAN low) | ECM connector (2.2TCII) | 45 (P-CAN low) | Approx. below 1Ω | |
|

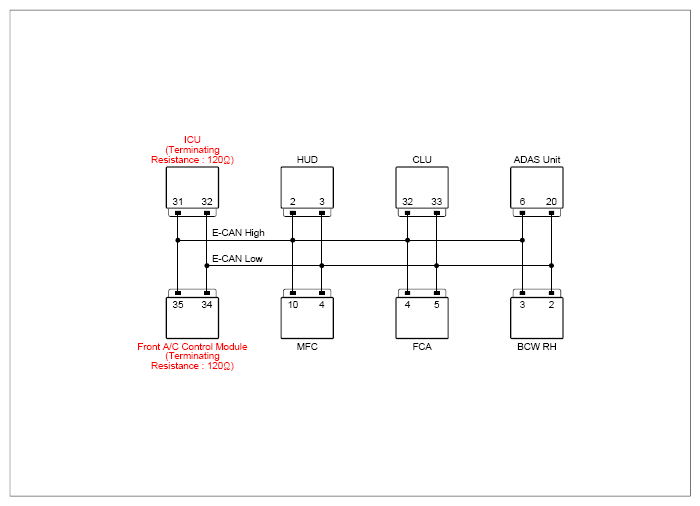

PCA-R connector | 6 (E-CAN high) | Chassis ground | - | Fig.2 |
| PCA-R connector | 20 (E-CAN low) | Chassis ground | - | ||
|
PCA-R connector | 6 (E-CAN high) | ICU connector | 31 (E-CAN high) | Approx. below 1Ω |
| PCA-R connector | 20 (E-CAN low) | ICU connector | 32 (E-CAN low) | Approx. below 1Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors and DTC still occurs, replace the ECM and Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
