Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

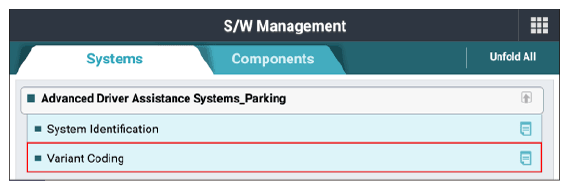

G14963247Courtesy of KIA MOTORS AMERICA, INC.

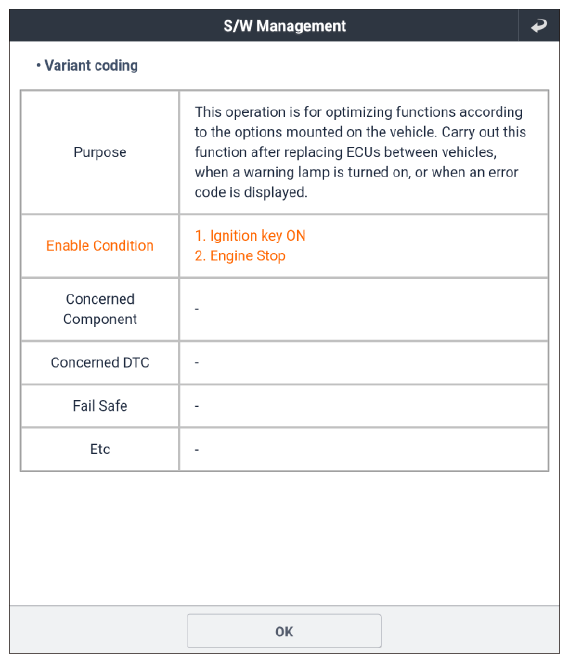

G14963248Courtesy of KIA MOTORS AMERICA, INC.

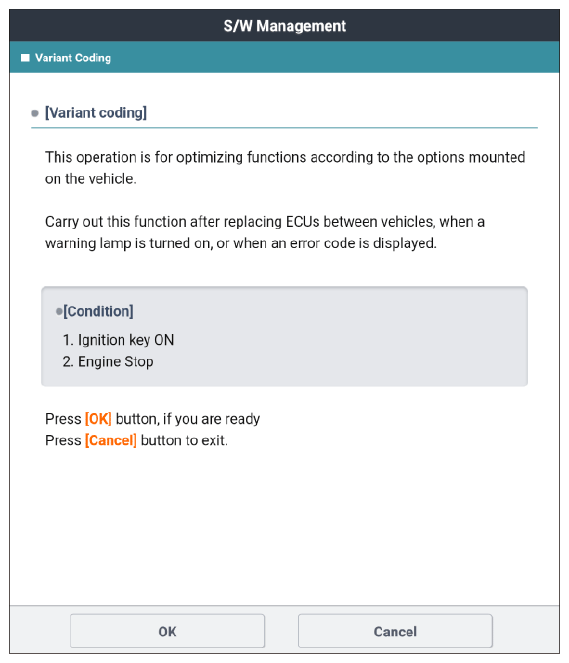

G14963249Courtesy of KIA MOTORS AMERICA, INC.

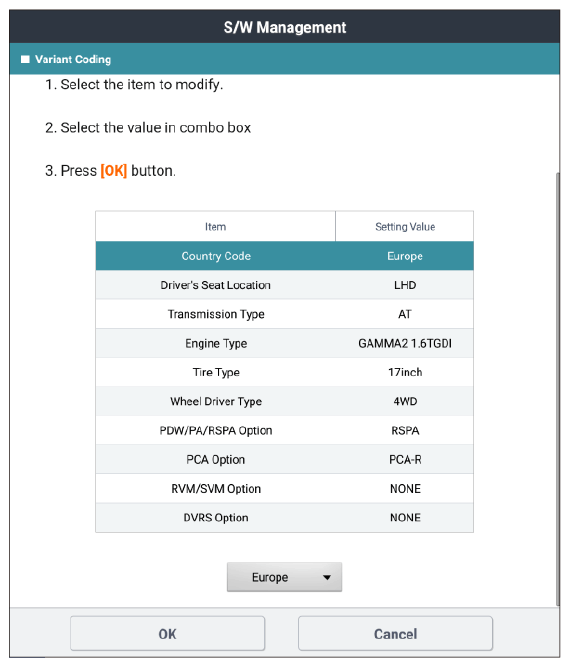

G14963250Courtesy of KIA MOTORS AMERICA, INC.
